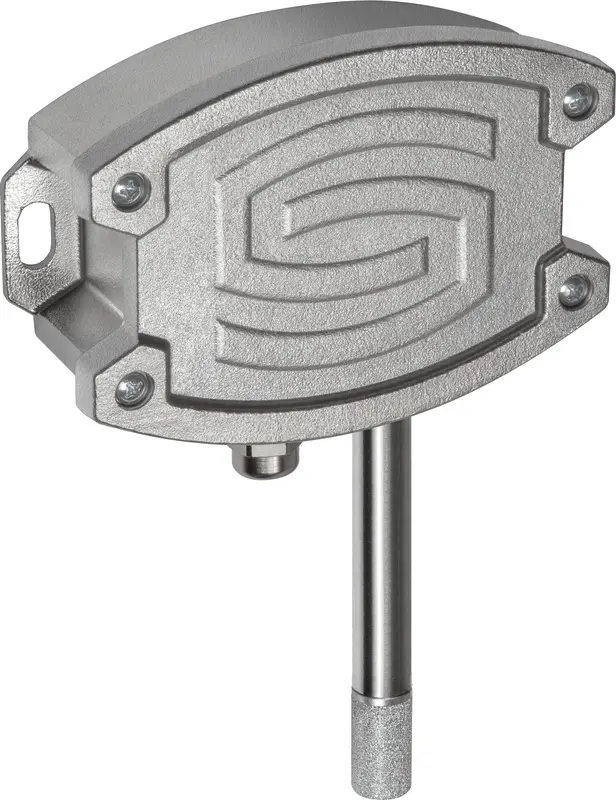

S+S REGELTECHNIK 2003-6181-1200-001 AFTF-20-U VA Feuchtesensor

Kalibrierfähiger HYGRASGARD AFTF - 20-VA-Außenfeuchte- und Temperaturmessumformer (± 1,8 %) mit Metallsinterfilter, robustes Gehäuse aus V4A-Edelstahl, wahlweise mit/ohne Display, mit Kabelverschraubung oder M12-Stecker nach DIN EN 61076-2- 101.

• Voltage supply : 24 V AC (± 20 %) and
• Power consumption: < 1.1 VA/ 24 V DC
• Data points : temperature [°C], relative humidity [% RH]
• Measuring accuracy : ± 1,8 %
• Load resistance: RL > 5 kOhm
• Ambient temperature: storage –35...+85 °C; operation – 30...+80 °C, non-precipitating
• Process connection : by screws via the mounting fixture on the housing
• Measuring range, humidity : 0...100 % RH
• Protective tube: stainless steel V2A (1.4301), Ø 16 mm
• Deviation of humidity: typical ± 1.8 % (10…90 % RH ); at + 25 °C, otherwise ± 2,0 %
• Electrical connection: 2-, 3- or 4-wire connection
• Output, humidity : 0 - 10 V
• Measuring range, temperature: multi-range switching
• Housing dimensions : 143 x 97 x 61 mm (Tyr 2E)
• Long-term stability: ± 1 % per year
• Temperature deviation: typically ± 0.2 K at +25 °C
• Output, temperature: 0 - 10 V
• Permissible air humidity: < 95 % RH, non-precipitating air
• Protection class : III (according to EN 60 730)
• Protection type: IP 65 (according to EN 60 529)
• Protection type housing: IP 65
• Sensor protection: metal sinter filter, Ø 16 mm, L = 32 mm, exchangeable,
• Measuring ranges : –35...+35 / –35...+75 / 0...+50 / 0...+80 °C
• Cable connection : cable fitting, stainless steel V2A (1.4305)
• Housing: stainless steel V4A (1.4571),
• Standards : CE conformity,
