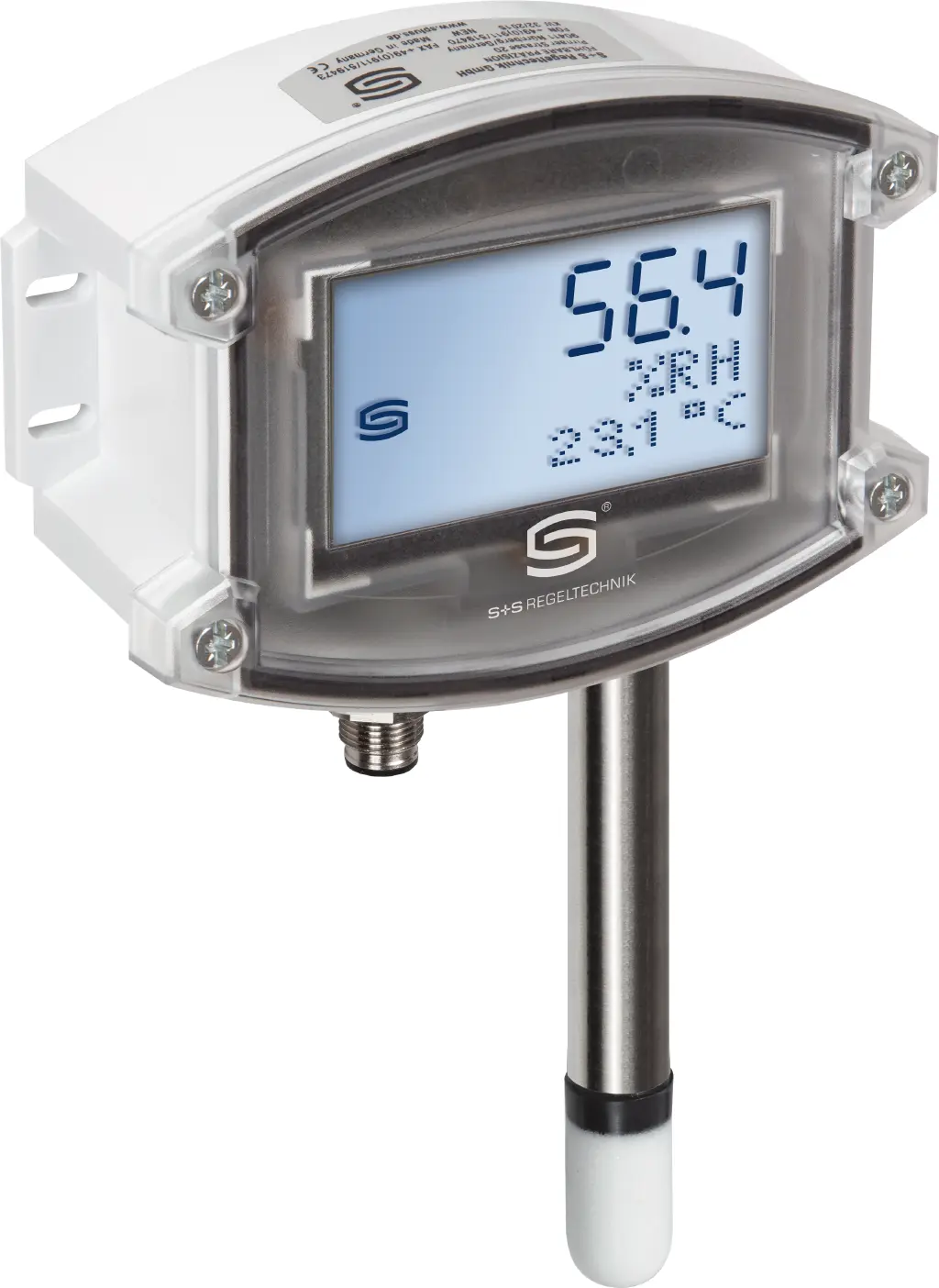

S+S REGELTECHNIK 2003-6122-1100-001 AFTF-20-U Q LCD Aufputz

Kalibrierfähige HYGRASGARD AFF-20 / AFTF-20 (± 1,8 %) Außenfeuchte-/Temperaturtransmitter mit Kunststoff-Sinterfilter (Metall-Sinterfilter optional); Gehäuse aus schlagfestem Kunststoff, mit Schnellverschlussschrauben, wahlweise mit/ohne Display, mit Kabelverschraubung (wahlweise mit M12-Stecker nach DIN EN 61076-2-101).

• Voltage supply : 24 V AC (± 20 %) and
• Power consumption: < 1.1 VA/ 24 V DC ; < 2.2 VA/ 24 V AC
• Data points : temperature [°C], relative humidity [% RH]
• Measuring accuracy : ± 1,8 %
• Load resistance: RL > 5 kOhm
• Measuring range, humidity : 0...100 % RH
• Deviation of humidity: typical ± 1.8 % (10…90 % RH ); at + 25 °C, otherwise ± 2,0 %
• Protection type: IP 65 (according to EN 60 529)*
• Output, humidity : 0 - 10 V
• Protection type housing: IP 65
• Measuring range, temperature: multi-range switching
• Temperature deviation: typically ± 0.2 K at +25 °C
• Output, temperature: 0 - 10 V
• Sensor protection: plastic sinter filter, Ø 16 mm, L = 35 mm, exchangeable
• Measuring ranges : –35...+35 / –35...+75 / 0...+50 / 0...+80 °C
• Ambient temperature: storage –35...+85 °C; operation – 30...+80 °C, non-precipitating
• Process connection : by screws
• Protective tube: stainless steel V2A (1.4301), Ø 16 mm
• Electrical connection: 2-, 3- or 4-wire connection
• Cable connection : cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing: plastic, UV-stabilised,
• Housing dimensions : 126 x 90 x 50 mm (Tyr 2)
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• Long-term stability: ± 1 % per year
• Permissible air humidity: < 95 % RH, non-precipitating air
• Protection class : III (according to EN 60 730)
• Standards : CE conformity,
• Optional: three-line display with illuminati
