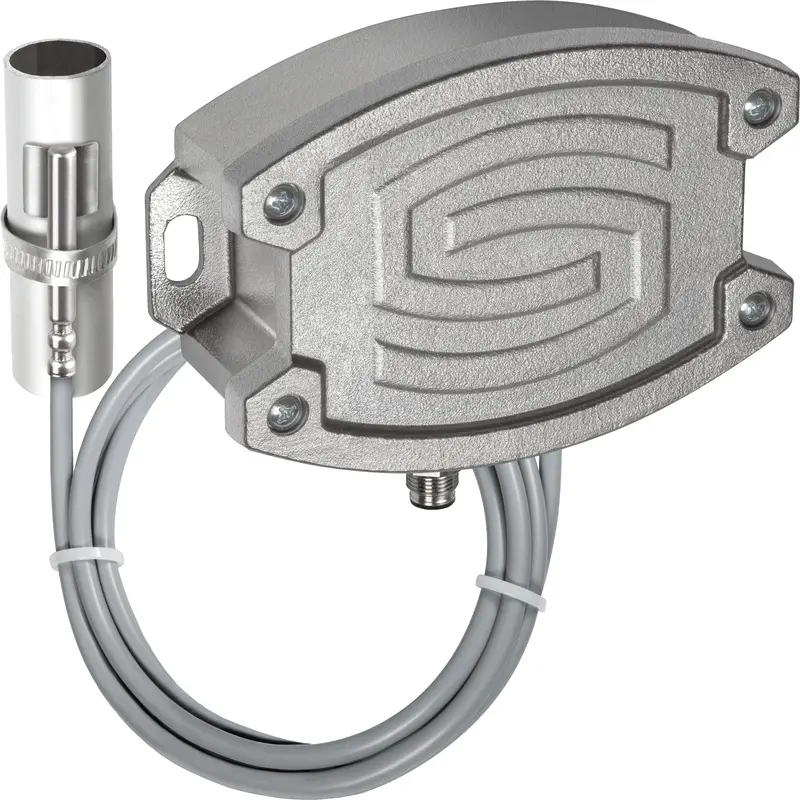

S+S REGELTECHNIK 2001-2151-1100-001 ALTM2-U VAQ Oberflächenkontakt

Kalibrierfähiger THERMASGARD ALTM 2 - VA-Rohranlege-Temperaturmessumformer mit acht umschaltbaren Messbereichen, externem Sensor, kontinuierlichem Ausgang, robustem Gehäuse aus V4A-Edelstahl, mit Kabelverschraubung oder M12-Stecker nach DIN EN 61076-2-101.

• Power consumption: < 1,0 W/ 24 V DC
• Voltage supply : 24 V AC/ DC (± 10 %)
• Temperature deviation : typically ± 0.2 K at +25 °C
• Load resistance: RL > 5 kOhm
• Sensor: Pt1000, DIN EN 60751, class B
• Connection type: 2-wire connection
• Ambient temperature: Measuring transducer –30...+70 °C
• Process connection : endless metal strap and metal tightener
• Insulating resistance : 100 MΩ,
• Strap dimensions: Ø = 13 - 92 mm (¼ - 3"), L = 300 mm
• Electrical connection : 0.14 - 1.5 mm² via terminal screws
• Housing dimensions : 143 x 97 x 61 mm (Tyr 2E)
• Output: 0 - 10 V
• Permissible air humidity: < 95 % RH, non-precipitating air
• Protection class: III (according to EN 60 730)
• Sensor protection: pipe feeder, stainless steel V4A (1.4571), Ø = 6 mm,
• Protection type housing : IP 65 (according to EN 60 529)
• Measuring ranges: multi-range switching with 8 switchable measuring ranges,
• Cable connection: M12 connector
• Housing : stainless steel V4A (1.4571),
• sensor cable : Silicone, SiHF, 2 x 0,25 mm²; cable length (KL) = 1.5 m
• Protection type (sensor): IP 65 (according to EN 60 529) sleeve humidity-tight (standard)
• Standards: CE conformity,
