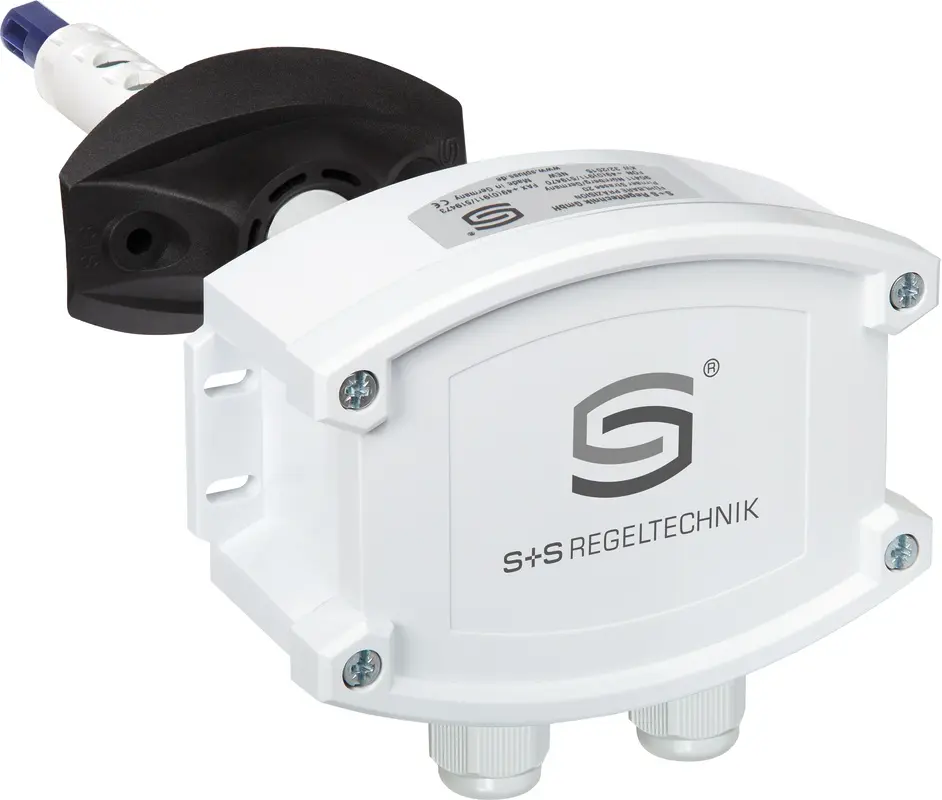

S+S REGELTECHNIK 1701-4216-0101-000 KLGF-Modbus Luftstromwächter

Kalibrierbarer Kanalluftstromsensor RHEASGARD KLGF - Modbus mit Modbus-Stecker, Gehäuse aus schlagfestem Kunststoff mit Schnellverschlussschrauben, mit Kabelverschraubung (optional M12-Stecker nach DIN EN 61076-2-101) wahlweise mit / ohne Display, zur Bestimmung der Strömungsgeschwindigkeit (0,1...20 m/s).

• Voltage supply : 24 V AC/ DC (± 10 %)
• Start bridging : 0...120 s (can be set via Modbus)
• Data points: flow velocity
• Measuring accuracy : 0.5 m/s + 3 % measured value
• Warm up time : < 2 min
• Response time: < 5 s
• Reproducibility: ± 1.0 % final value
• Current consumption: approx. 4 VA
• Measuring range: 0,1...20 m/s
• Ambient temperature: storage –20...+ 50 °C
• Medium: pollutant-free, non-precipitating air
• Bus protocol : Modbus (RTU mode),
• Process connection : by mounting flange
• Electrical connection : 0.2 - 1.5 mm², via push-in terminal
• Screwed socket : -
• Housing dimensions : 126 x 90 x 50 mm (Tyr 2)
• Cable gland: M 16 x 1.5, including strain relief, exchangeable,
• Long-term stability: ± 0.5 % final value per year
• Humidity: < 98% RH pollutant-free, non-precipitating air
• Sensor: Calorimetric, temperature compensated, sensor breakage protection, with manual zero-point calibration (via button)
• Protection class: III (according to EN 60 730)
• Protection type: IP65, Sensors IP 20
• Protection type (sensor): IP20
• Protection type housing : IP 65 (according to EN 60 529)*
• Max. sensor cable length: 50 m, avoid laying parallel with mains voltage-carrying lines,
• Protective tube: PLEUROFORM, material polyamide (PA6), twist-proof,
• Inserted length: 220 mm
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing : plastic, UV-stabilised,
• Standards: CE co
