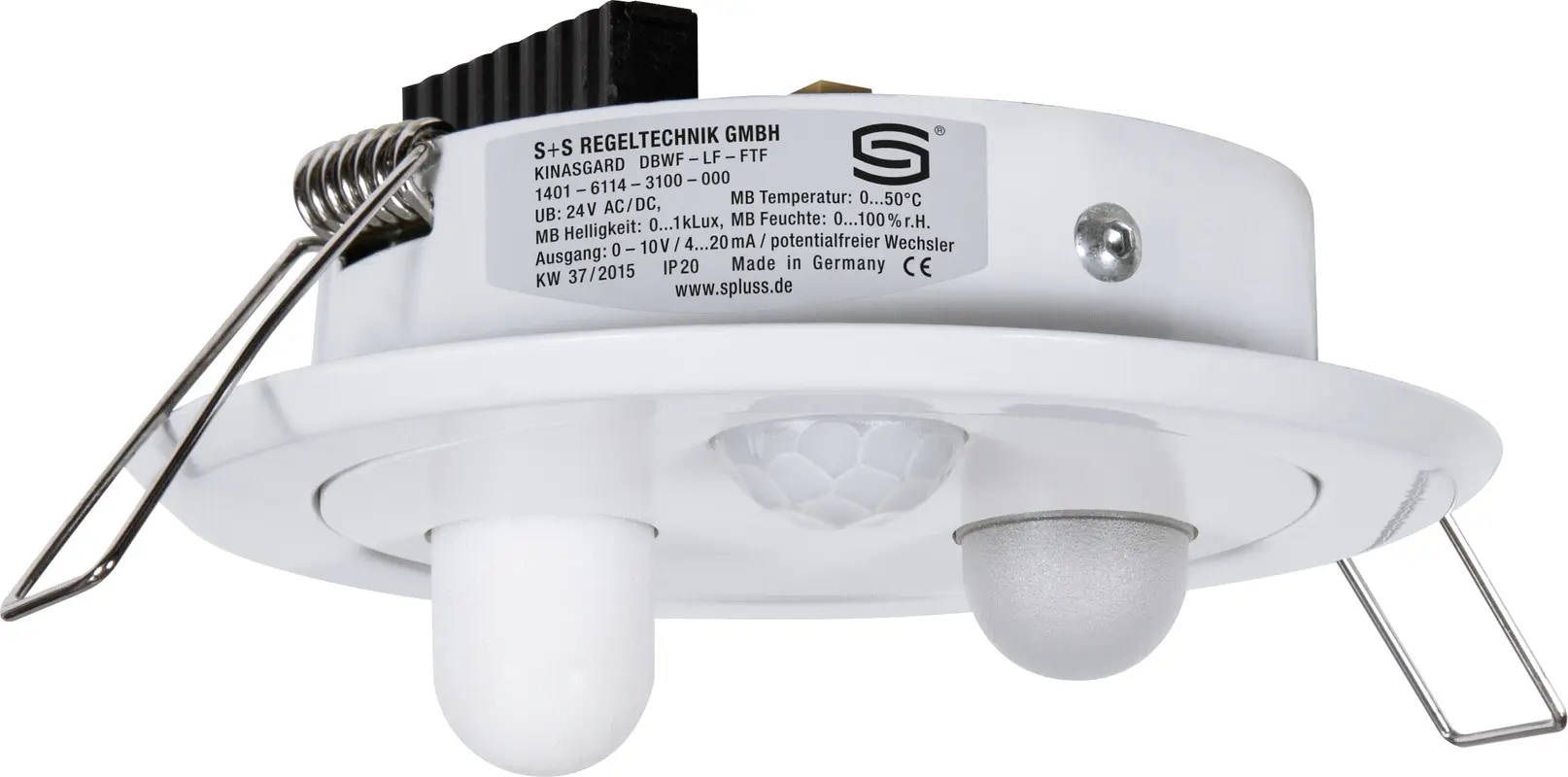

S+S REGELTECHNIK 1401-6114-3100-000 DBWF-LF-FTF-W Bewegungsmelder

Die an der Decke montierten Bewegungs-/Lichtmesssensoren KINASGARD und PHOTASGARD DBWF / LF / FTF dienen zur Erfassung von Personen (in Entfernungen bis zu 10 Metern), Lichtstärke bzw. Helligkeit, relativer Luftfeuchtigkeit und Temperatur. Sie werden zum Einbau in abgehängte Decken verwendet.

• Voltage supply: 24 V AC/ DC
• Power consumption : < 3.6 VA at 24 V DC
• Measuring range, humidity: 0...100 % RH
• Operating range, humidity: 10...95 % RH, without formation of dew
• Deviation of humidity: typically ± 3.0 % (20...80 % r. H.) at +20 °C, otherwise ± 5.0 %
• Output, humidity: 0 - 10 V
• Measuring range, temperature : 0...+ 50 °C
• Operating range, temperature : 0...+50 °C
• Temperature deviation: typically ± 0.8 K at +20 °C, under standard conditions
• Output, temperature : 0 - 10 V
• Output: 0 -10 V or inverted 10 - 0 V (selectable via DIP switches)
• Output, light sensor: 0 - 10 V
• Output, motion sensor: potential-free changeover contact,
• Sensor: infra-red motion sensor, light sensor with diffuser
• Detection range : perimeter 360°, aperture angle 90°/ 110°,
• Motion detection: of persons and objects, required temperature difference
• After-running time: adjustable from 4 s to 17 min
• Sensor protection : mounted inside ceiling installation housing
• Measuring range, light sensor: 0...1000 lux / 0...5000 lux (selectable via DIP switches)
• Deviation, light sensor : < ± 10 % of final value
• Ambient temperature : 0...+50 °C
• Storage temperature : –20...+50 °C
• Installation dimensions : ceiling cutout: Ø 80 mm
• Electrical connection: 0.14 - 1.5 mm²
• Housing : steel, white painted
• Housing dimensions: cover: Ø 96 mm, height of housing: 30 mm
• Temperature drift values: < ± 5 % of final value/ 10 K at +20 °C
• Protection class: III (according to EN 60 73
