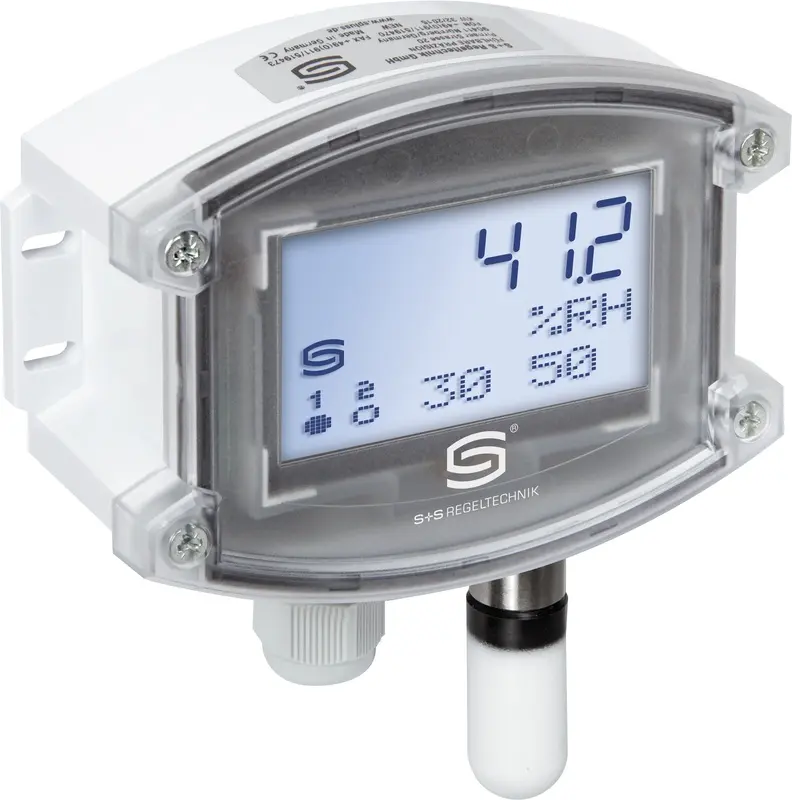

S+S REGELTECHNIK 1202-7127-1421-000 AHT-30W-U LCD-Hygrostate

Elektronischer Raumhygrostat bzw. Raumthermostat HYGRASREG AHT-30 mit einem stetigen und zwei Schaltausgängen, einstellbaren Schaltschwellen, mit/ohne optionalem Display zur Anzeige der aktuellen Luftfeuchtigkeit und/oder der aktuellen Temperatur (Genauigkeitsklasse ±2,0 % r.F.). Die Sollwerte können der relativen Luftfeuchtigkeit und/oder der Temperatur zugeordnet werden.

• Voltage supply: 24 V AC/ DC (± 20 %)
• Power consumption: < 1.5 VA/ 24 V DC, < 3.5 VA/ 24 V AC
• Deviation of humidity: typical ± 2.0 % (20…80 % RH); at + 25 °C, otherwise ± 3.0 %
• Temperature deviation: typically ± 0.4 K at +25 °C
• Ambient temperature: storage –35...+85 °C;
• Protective tube : stainless steel V2A (1.4301), Ø 16 mm, NL = 55 mm
• Electrical connection: 0.14 - 1.5 mm² via terminal screws
• Output: potential-free changeover contacts
• Sensor: digital humidity sensor
• Sensor protection: plastic sinter filter, Ø 16 mm, L = 35 mm, exchangeable
• Housing dimensions : 126 x 90 x 50 mm (Tyr 2)
• Operating difference : Mode 1: both switch steps are freely adjustable (rel. humidity)
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• Long-term stability: ± 1 % per year
• Setting range: 5...95 % r.H. (humidity)
• Protection class: III (according to EN 60 730)
• Protection type : IP 65 (according to EN 60 529) housing only!
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Standards : CE conformity, EMC directive 2014/ 30/ EU
• Housing : plastic, UV-stabilised,
• Display : three-line display with illumination, cutout approx. 70 x 40 mm (W x H),
• Function: Humidifying/heating:
