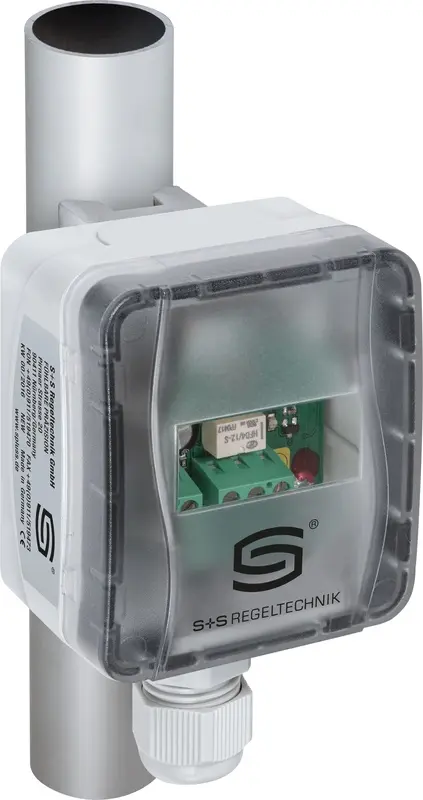

S+S REGELTECHNIK 1202-1075-0001-020 KW-W-SD Kondensatkontrollschalter

Patentiertes Qualitätsprodukt (prodynamische Querkonvektion, Patent-Nr. DE 10 2012 015 726.6)

• Voltage supply: 24 V AC (± 20 %) and
• Switchpoint : approx. 93 % RH
• Power consumption : < 1.1 VA/ 24 V DC ; < 2.2 VA/ 24 V AC
• Data points : Relative humidity [% RH]
• Output : potential-free changeover contact (24 V), 1 A ohmic load
• Sensor protection : membrane filter
• Medium : clean air and
• Electrical connection: 0.14 - 1.5 mm² via terminal screws
• Housing dimensions: 72 x 64 x 43.3 mm
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• Protection class: III (according to EN 60 730)
• Process connection: endless metal strap with metal tightener,
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing: plastic, UV-stabilised,
• Installation: The mounting position should be selected
• Protection type: IP 43 (according to EN 60 529)
• Protection type housing: IP 54
• Standards : CE conformity,
• Function: The relay output is triggered (contact 13 -11 closed)
