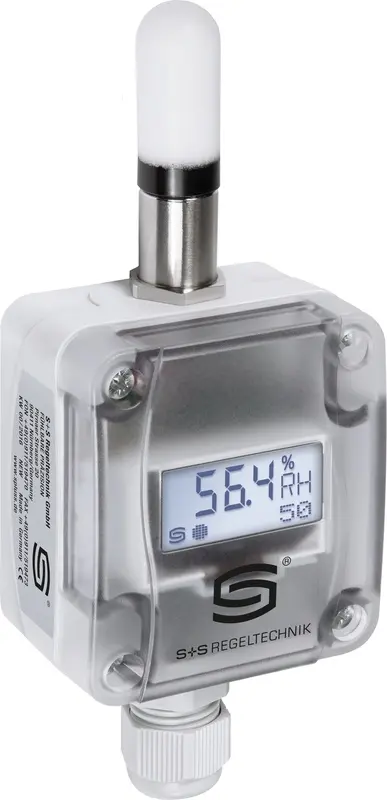

S+S REGELTECHNIK 1202-1065-0221-000 AH-40W LCD Hygrostat

Elektronischer Hygrostat und Feuchtemelder HYGRASREG AH - 40 mit einem Schaltausgang, einstellbarer Schaltschwelle und Display zur Anzeige der Ist-Feuchte (Genauigkeitsklasse ±2,0 % r.F.) und zur Einstellung der Soll-Feuchte.

• Voltage supply: 24 V AC (± 20 %) and
• Power consumption: < 1.1 VA/ 24 V DC ; < 2.2 VA/ 24 V AC
• Deviation of humidity: typical ± 2 % RH (20…80 % RH ); at + 25 °C, otherwise ± 3 %
• Output: potential-free changeover contact (24 V), 1 A ohmic load
• Sensor protection: plastic sinter filter, Ø 16 mm, L = 35 mm, exchangeable
• Setting range: 5...95 % r. H.
• Ambient temperature: storage –35...+85 °C;
• Process connection : by screws
• Protective tube : stainless steel V2A (1.4301), Ø 16 mm, NL = 55 mm
• Electrical connection: 0.14 - 1.5 mm² via terminal screws
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing : plastic, UV-stabilised,
• Housing dimensions : 72 x 64 x 43.3 mm (Tyr 1 with Display)
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• Long-term stability: ± 1 % per year
• Protection class: III (according to EN 60 730)
• Protection type : IP 65 (according to EN 60 529) housing only!
• Standards : CE conformity,
• Display : two-line display with illumination, cutout approx. 36 x15 mm (W x H),
• Displaying: The 1st line of the display shows the relative humidity.
• Function: actual humidity < switching valuecontact 11-12 closed (LED OFF)
