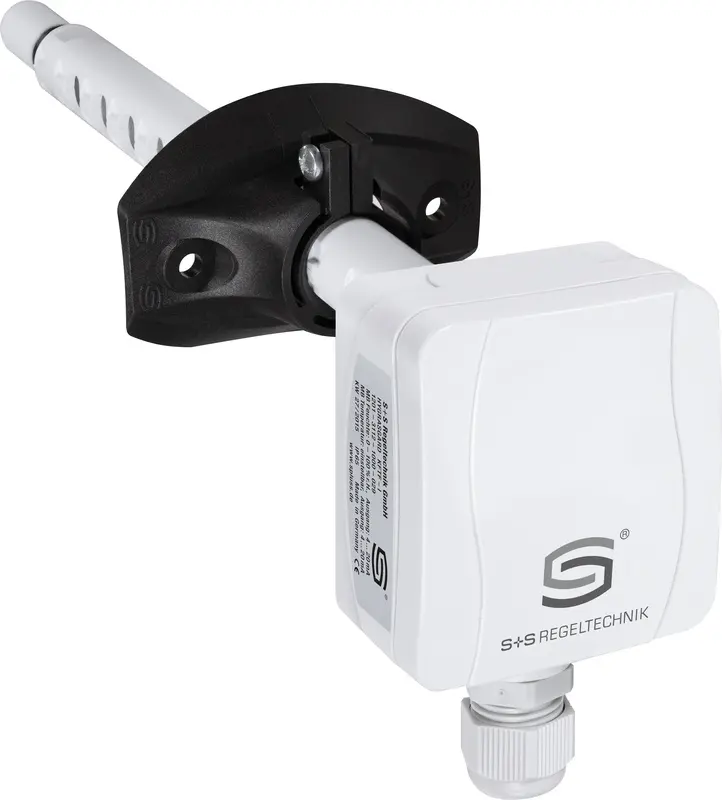

S+S REGELTECHNIK 1201-3181-0000-029 KFF-SD-U Kanalfeuchtesensor

Kalibrierfähiger HYGRASGARD KFF - SD / KFTF - SD Kanal-Feuchte-/Temperatursensor (±2,0 %), mit Kunststoff-Sinterfilter (Metall-Sinterfilter optional), Gehäuse aus schlagfestem Kunststoff mit Schnappdeckel.

• Voltage supply : 24 V AC (± 20 %) and
• Power consumption: < 1.1 VA/ 24 V DC ; < 2.2 VA/ 24 V AC
• Data points : Relative humidity [% RH]
• Load resistance: RL > 5 kOhm
• Measuring range, humidity : 0...100 % RH
• Deviation of humidity: typical ± 2 % RH (20…80 % RH ); at + 25 °C, otherwise ± 3 %
• Output, humidity : 0 - 10 V
• Measuring range, temperature: multi-range switching
• Sensor protection: plastic sinter filter, Ø 16 mm, L = 35 mm, exchangeable
• Measuring range: 0...100 % RH
• Process connection : by mounting flange, plastic
• Protective tube: PLEUROFORM, material polyamide (PA6), with torsion protection,
• Electrical connection: 2-, 3- or 4-wire connection
• Cable connection : cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing: plastic, UV-stabilised,
• Housing dimensions : 72 x 64 x 37.8 mm (Tyr 01)
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• Long-term stability: ± 1 % per year
• Permissible air humidity: < 95 % RH, non-precipitating air
• Protection class : III (according to EN 60 730)
• Protection type: IP 54 (according to EN 60 529) Housing tested,
• Protection type housing: IP 54
• Standards : CE conformity,
