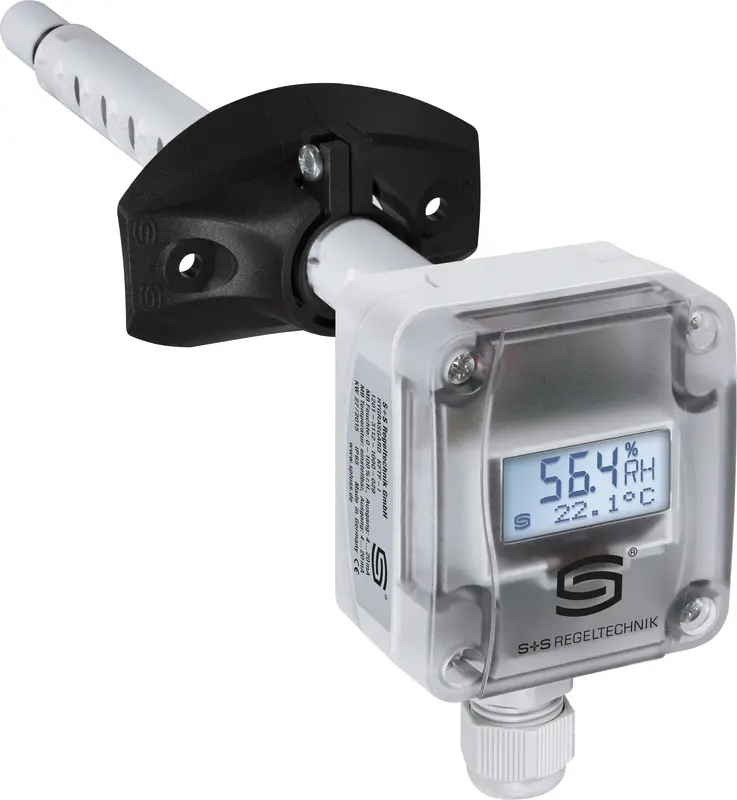

S+S REGELTECHNIK 1201-3162-6200-029 KAVTF-I LCD Kanalfeuchtesensor

Der universelle HYGRASGARD KAVTF Feuchtemessumformer mit 6 Ausgangswerten dient zur Ermittlung vielfältiger Messgrößen in der Feuchtemessung. Zu den Messgrößen gehören die relative Luftfeuchtigkeit und die Umgebungslufttemperatur. Aus diesen Messgrößen werden intern verschiedene Parameter berechnet.

• Power consumption: < 1 W at 24 V DC; < 2 VA at 24 V AC
• Voltage supply : 15...36 V DC
• Measuring range, humidity : multi-range switching with 8 switchable measuring ranges
• Data points : Temperature [°C], relative humidity [% RH],
• Operating range, humidity : 10...95 % RH, without formation of dew
• Working resistance : Ra (ohm) = (Ub -14 V)/ 0.02 A for I variant
• Operating range, temperature: –35...+80 °C sensors
• Temperature deviation: typically ± 0.2 K at +25 °C
• Deviation of humidity: typical ± 2 % RH (20…80 % RH ); at + 25 °C, otherwise ± 3 % RH
• Output, humidity : 4...20 mA
• Measuring range, temperature: multi-range switching with
• Output, temperature: 4...20 mA
• Measuring ranges : 0...+50 / –20...+80 / –35...+75 / –35...+35 °C
• Ambient temperature: storage –35...+85 °C,
• Process connection : by mounting flange, plastic
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• Protection class : III (according to EN 60 730)
• Protection type: IP 65 (according to EN 60 529) housing only!
• Protection type housing: IP 65
• Sensor protection: plastic sinter filter, Ø 16 mm, L = 35 mm, exchangeable
• Protective tube: PLEUROFORM, material polyamide (PA6), with torsion protection,
• Electrical connection: 3-wire connection (Transmitter)
• Cable connection : cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing: plastic, UV-stabilised,
• Housing dimensions : 72 x 64 x 43.3 mm (Tyr 1 with Display)
