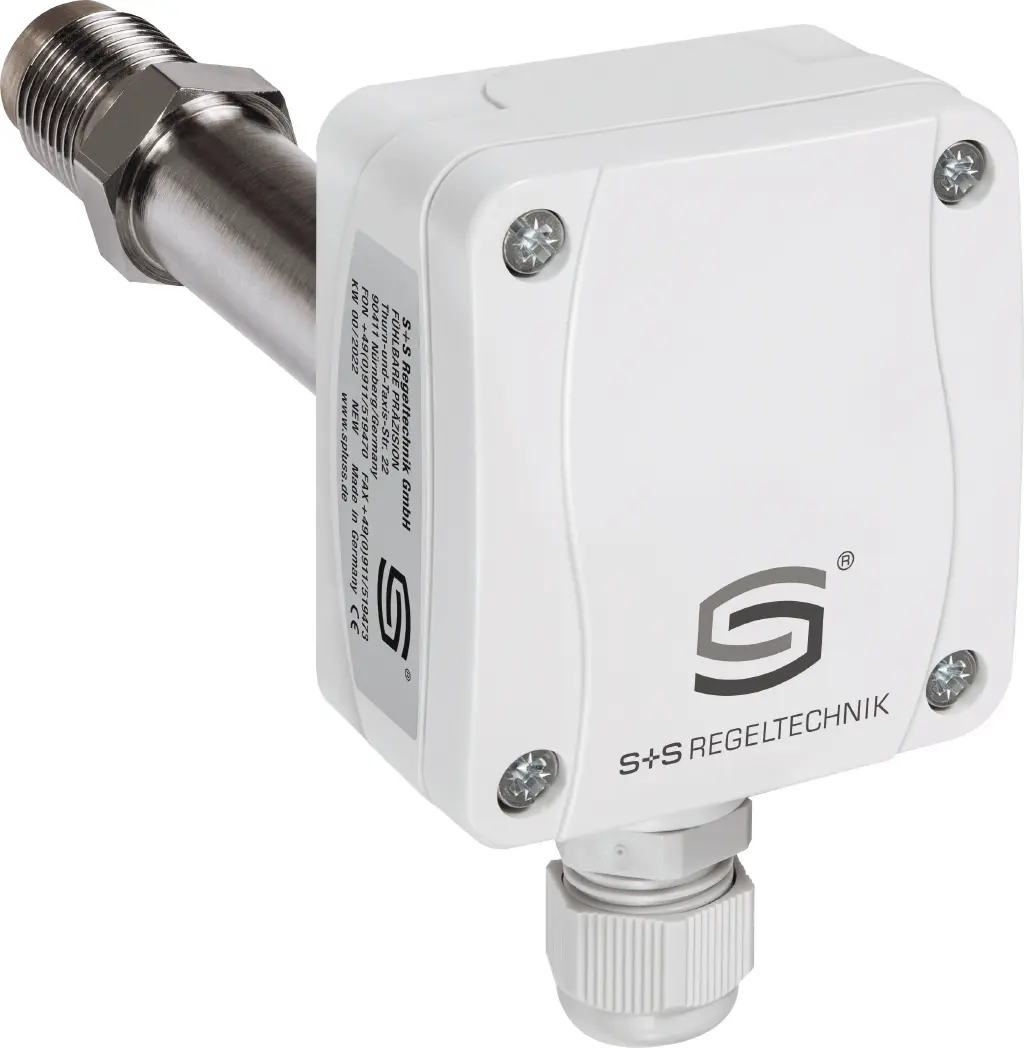

S+S REGELTECHNIK 1201-2111-1000-000 ESFTF-U Einschraubbarer Feuchte

Die Feuchtetransmitter der HYGRASGARD ESFF / ESFTF-Serie dienen zur Messung der relativen Feuchte und Lufttemperatur in druckbeaufschlagten Systemen und wandeln diese Messwerte in Standardsignale von 4...20 mA oder 0-10 V um. Der Prozessanschluss ist G ½" gerade Rohraußengewinde, mit Klemmenkastengehäuse aus schlagfestem Kunststoff und Gehäusedeckel mit Schnellverschlussschrauben.

• Voltage supply : 24 V AC/DC (± 10 %) for U -variant;
• Power consumption: 1.1 VA for U variant;1.5 W for I variant
• Working resistance : RLmax = (UB - 15 V) / 0.02 A for I -variant, see load diagram
• Data points : Temperature [°C], relative humidity [% RH],
• Measuring range, humidity : 0...100 % RH
• Temperature deviation: typically ± 0.5 K at +25 °C
• Deviation of humidity: typically ± 3.0 % (30...70 % RH) at +25 °C, otherwise ± 3.5 %
• Measuring range, temperature: multi-range switching with 4 switchable measuring ranges
• Nominalpressure: 10 bar
• Warm up time: < 5 min
• Response time: < 60 s
• Output : 0 - 10 V for U variant; 4...20 mA for I variant
• Sensor protection: Metal sintered filter, Ø 20 mm, replaceable, with condensation protection due to heating function
• Measuring ranges : 0...100 % RH
• Ambient temperature: storage –20...+ 50 °C
• Process connection : screwed socket with G ½ " straight pipe thread, immersion depth 25 mm
• Protective tube: made of metal, Ø 20 mm, NL = 115 mm, pressure resistance pmax = 10 bar
• Electrical connection: 3- or 4-wire connection
• Sensor : digital humidity sensor
• Dimensions: 72 x 64 x 37,8 mm (Tyr 1)
• Installation: vertical mounting, humidity sensor at the bottom
• Long-term stability: ± 1 % per year
• Housing: plastic, UV-stabilised,
• Humidity: < 99% RH, pollutant-free, non-precipitating air
• Protection class : III (according to EN 60 730)
<
