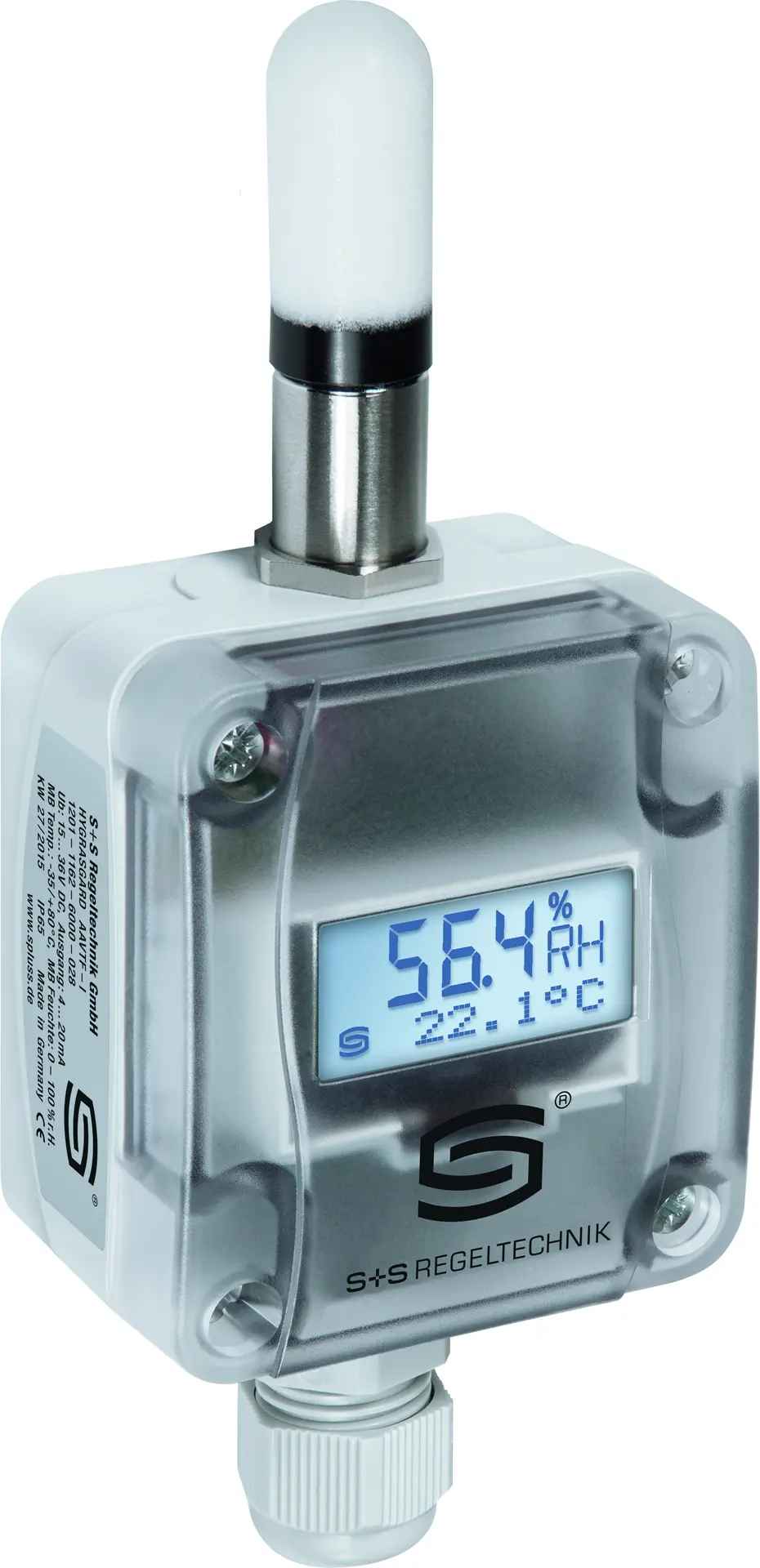

S+S REGELTECHNIK 1201-1161-6200-028 AAVTF-U LCD Aufputz

Der universelle HYGRASGARD AAVTF Feuchtemessumformer unterstützt sechs Ausgangswerte und dient zur Ermittlung vielfältiger Messgrößen in der Feuchtemessung. Zu den Messgrößen gehören die relative Luftfeuchtigkeit und die Umgebungslufttemperatur. Aus diesen Messgrößen werden intern verschiedene Parameter berechnet.

• Power consumption: < 1 W at 24 V DC; < 2 VA at 24 V AC
• Voltage supply : 24 V AC (± 20 %) and
• Measuring range, humidity : multi-range switching with 8 switchable measuring ranges
• Operating range, humidity : 10...95 % RH, without formation of dew
• Data points : Temperature [°C], relative humidity [% RH],
• Operating range, temperature: –35...+80 °C sensors
• Temperature deviation: typically ± 0.6 K at +25 °C
• Load resistance: RL > 5 kOhm
• Deviation of humidity: typical ± 2 % RH (20…80 % RH ); at + 25 °C, otherwise ± 3 % RH
• Output, humidity : 0 - 10 V
• Measuring range, temperature: multi-range switching with
• Output, temperature: 0 - 10 V
• Measuring ranges : 0...+50 / –20...+80 / –35...+75 / –35...+35 °C
• Ambient temperature: storage –35...+85 °C,
• Process connection : by screws
• Protective tube: stainless steel V2A (1.4301), Ø 16 mm, NL = 55 mm
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• Protection class : III (according to EN 60 730)
• Protection type: IP 65 (according to EN 60 529) housing only!
• Protection type housing: IP 65
• Sensor protection: plastic sinter filter, Ø 16 mm, L = 35 mm, exchangeable
• Electrical connection: 4-wire connection
• Cable connection : cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing: plastic, UV-stabilised,
• Housing dimensions : 72 x 64 x 43.3 mm (Tyr 1 with Display)
• Standards : CE conformity,
• Display: two-line display w
