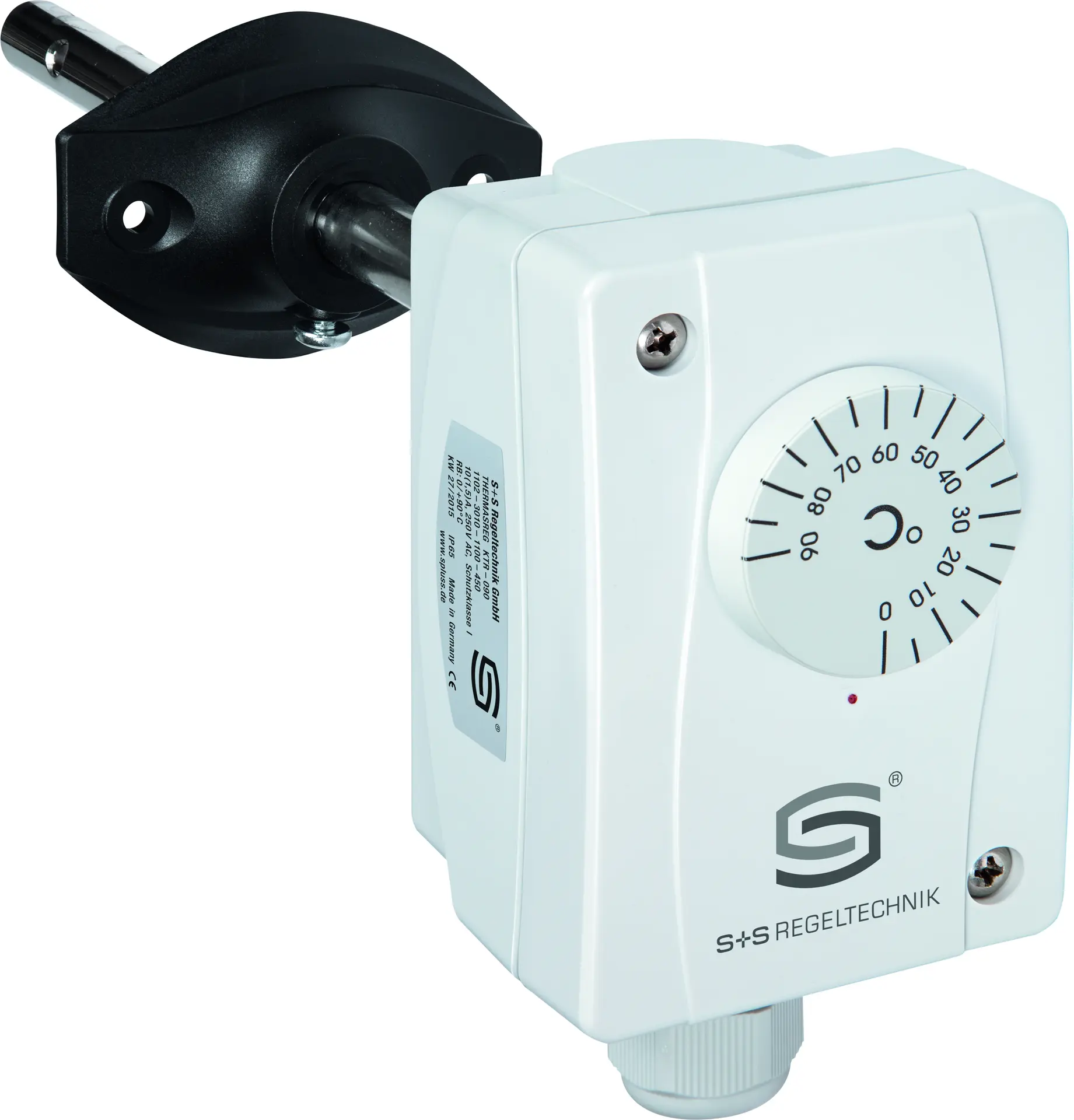

S+S REGELTECHNIK 1102-3010-1100-550 KTR-0120 Kanaltemperaturregler

DIN-geprüftes, deutsches Qualitätsprodukt. EG-Baumustergeprüft (Modul B) gemäß Richtlinie 97/23/EG. Temperaturregel- und -begrenzungsgeräte für Wärmeerzeugungsanlagen gemäß DINEN14597.

• Contact: dust-proof switch block unit as potential-free,
• Ambient temperature : –10...+65 °C at the switch block housing
• Operating medium : Air
• Process connection: by mounting flange
• Protective tube: metal, material CuZn37 (2.0321),
• Inserted length: approx. 205 mm (with flange);
• Mounting position: arbitrary
• Switching capacity (Contact load): 24…250 V AC +10 %, 10 A, cos= 1.0
• Electrical connection : 0.14 - 2.5 mm²
• Housing dimensions: 108 x 70 x 73,5 mm (Thor 2)
• Cable gland : M 20 x 1.5; including strain relief
• Tolerance : Tmin ± 5 K; Tmax ± 3 K
• Protection class : I (according to EN 60 730)
• Protection type: IP 65 (according to EN 60 529)*
• Measuring element: torsion meter with liquid filling,
• Housing: plastic, UV-stabilised,
• Standards : CE conformity,
• Tests: EC type test (module B) according to directive 2014/ 68/ EU,
• Function: TW, TR:
