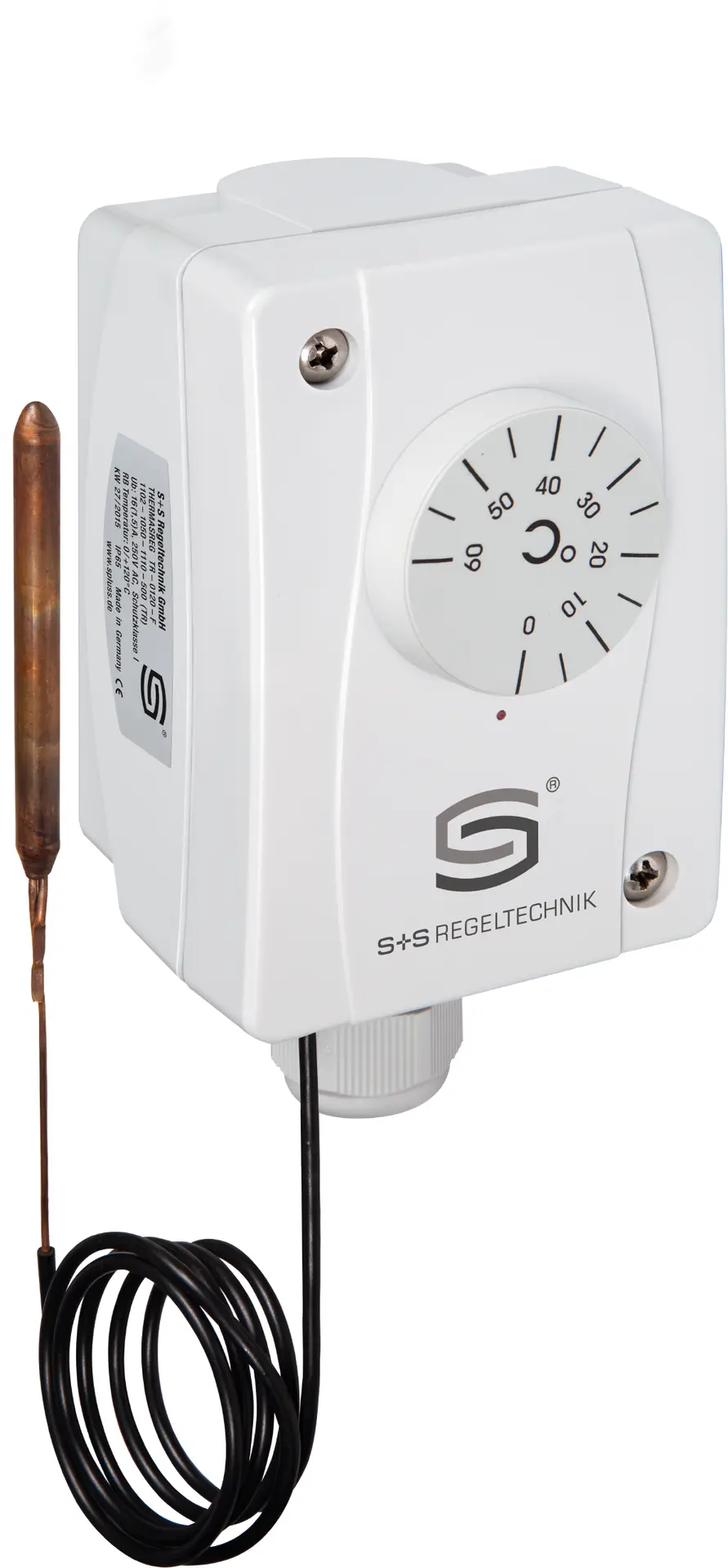

S+S REGELTECHNIK 1102-1050-1110-500 TR-0120-F Temperaturregler, einstufig

Mechanischer Temperaturregler THERMASREG TR xx - F mit Fernfühler und Schaltausgang (einstufig), der ohne Fremdspannung arbeitet, als Kapillarthermostatregler.

• Contact: dust-proof switch block unit as potential-free
• Sensor : copper tube, length of capillary = 1 m with PVC protective hose,
• Inserted length: immersion sleeves EL = 150 mm
• Electrical connection : 0.14 - 2.5 mm²
• Housing dimensions: 108 x 70 x 73,5 mm (Thor 2)
• Housing temperature : –10...+65 °C
• Switching capacity (Contact load): 24…250 V AC +10 %, 16 A, cos= 1.0
• Cable gland : M 20 x 1.5; including strain relief
• Design principle : torsion meter with liquid filling
• Tolerance : Tmin ± 3 K; Tmax ± 3 K
• Protection class : I (according to EN 60 730)
• Housing: plastic, UV-stabilised,
• Protection type: IP 65 (according to EN 60 529)*
• Standards : CE conformity,
• Function: Heating: wire contacts 2 - 3
