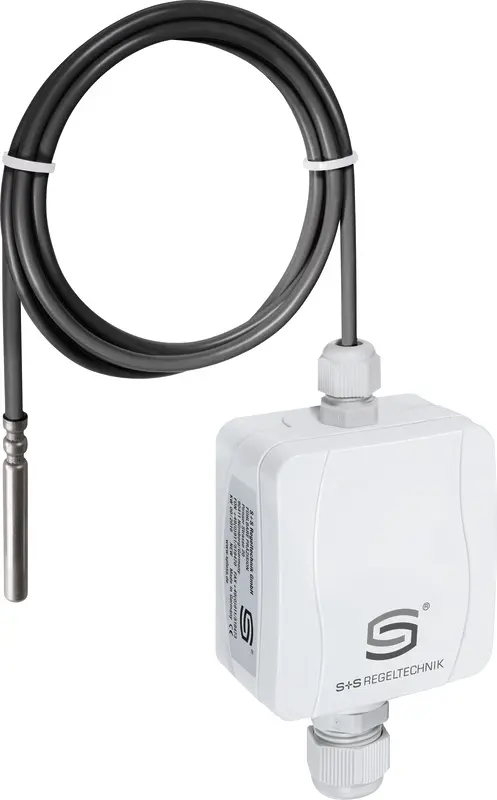

S+S REGELTECHNIK 1101-6162-0219-920 HFTM-SD-I Hülsenfühler mit

Kalibrierfähiger THERMASGARD HFTM Temperaturmessumformer mit Hülsenfühler mit acht umschaltbaren Messbereichen, kontinuierlicher Ausgang, Gehäuse aus schlagfestem Kunststoff mit Schnellverschlussschrauben, wahlweise mit/ohne Display, mit Kabelverschraubung oder M12-Stecker nach DIN EN 61076-2- 101.

• Power consumption: < 1,0 W/ 24 V DC
• Deviation of humidity : typically ± 0.2 K at +25 °C
• Temperature deviation : typically ± 0.2 K at +25 °C
• Sensor: Pt1000, DIN EN 60751, class B
• Connection type: 2- or 3-wire connection
• Ambient temperature: Measuring transducer –30...+70 °C
• Insulating resistance : 100 MΩ,
• Electrical connection : 0.14 - 1.5 mm²
• Cable gland: M 16 x 1.5, including strain relief, exchangeable,
• Permissible air humidity: < 95 % RH, non-precipitating air
• Protection class: III (according to EN 60 730)
• Sensor protection: sensor sleeve, stainless steel V4A (1.4571), Ø = 6 mm,
• Measuring ranges: multi-range switching with 8 switchable measuring ranges,
• Sensor protection: stainless steel, 1.4571, V4A, Ø = 6 mm,
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing : plastic, UV-stabilised,
• Housing dimensions : 72 x 64 x 37.8 mm (Tyr 01)
• sensor cable : Silicone, SiHF, 2 x 0,25 mm²; cable length (KL) = 1.5 m
• Protection type: IP 54 (according to EN 60 529)
• Protection type (sensor): IP 65 (according to EN 60 529) sleeve humidity-tight (standard)
• Protection type housing : IP 54 (according to EN 60 529) Housing tested,
• Standards: CE conformity,
