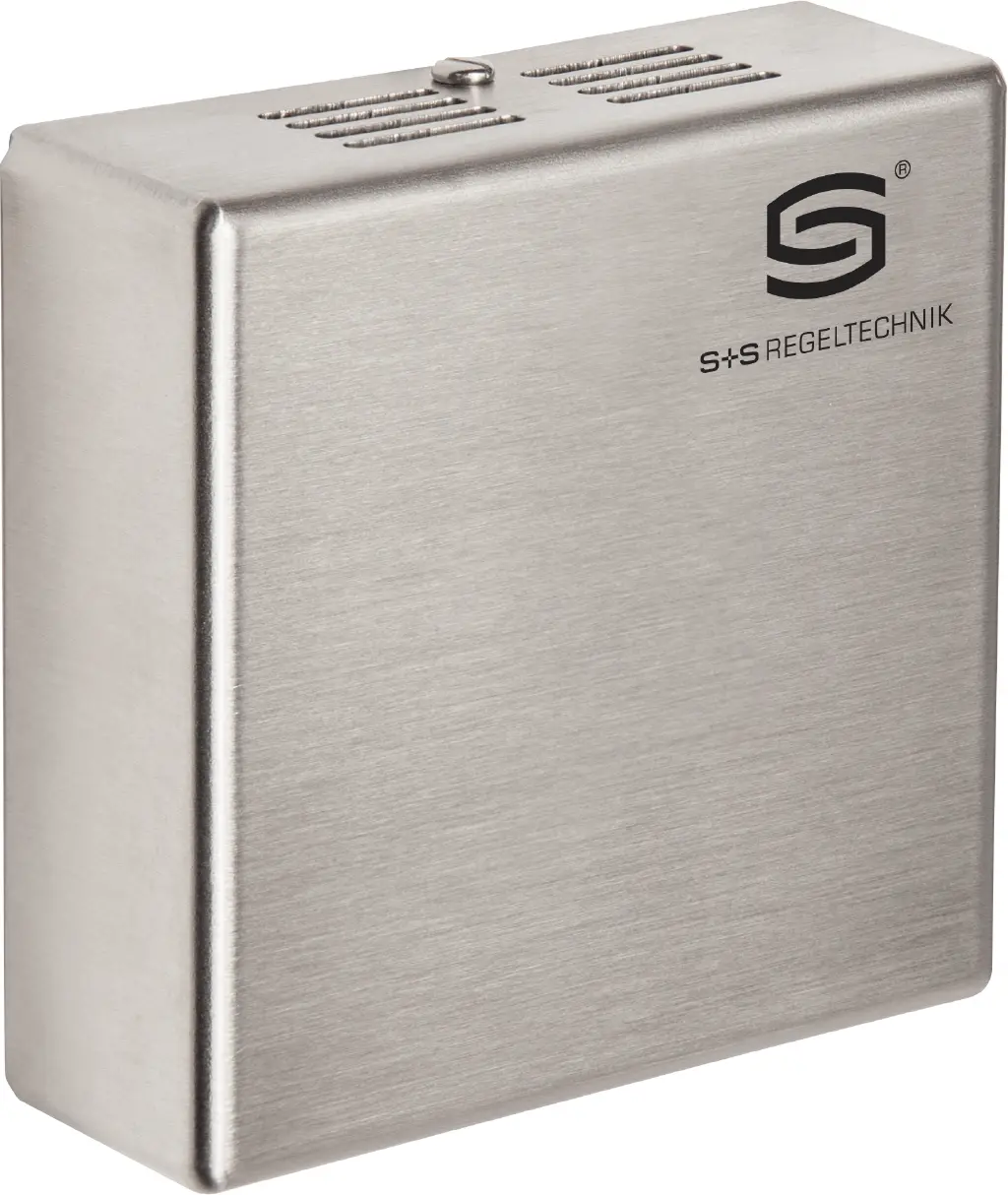

S+S REGELTECHNIK 1101-4152-0000-200 RTM1-I VA Raumtemperatur

Kalibrierfähiger Raumtemperaturtransmitter THERMASGARD RTM 1-VA mit kontinuierlichem Ausgang, im Edelstahlgehäuse (Ober- und Unterteil Edelstahl, Deckel verschraubt) für vandalensichere Anwendungen z.B. in Schulen, Kasernen und öffentlichen Gebäuden.

• Voltage supply : 15...36 V DC
• Power consumption: < 1.0W24V DC; < 2.2VA24V AC
• Working resistance : Ra (ohm) = (Ub -14 V)/ 0.02 A for I variant
• Temperature deviation : typically ± 0.2 K at +25 °C
• Connection type: 2- or 3-wire connection
• Ambient temperature: Measuring transducer –30...+70 °C
• Process connection : by screws
• Electrical connection : 0.14 - 1.5 mm² via terminal screws
• Output: 4...20 mA
• Permissible air humidity: < 95 % RH, non-precipitating air
• Protection class: III (according to EN 60 730)
• Protection type: IP 30 (according to EN 60 529)
• Measuring ranges: multi-range switching with 8 switchable measuring ranges,
• Housing : stainless steel V2A (1.4301)
• Installation : wall mounting or on in-wall flush box, Ø 55 mm,
• Standards: CE conformity,
