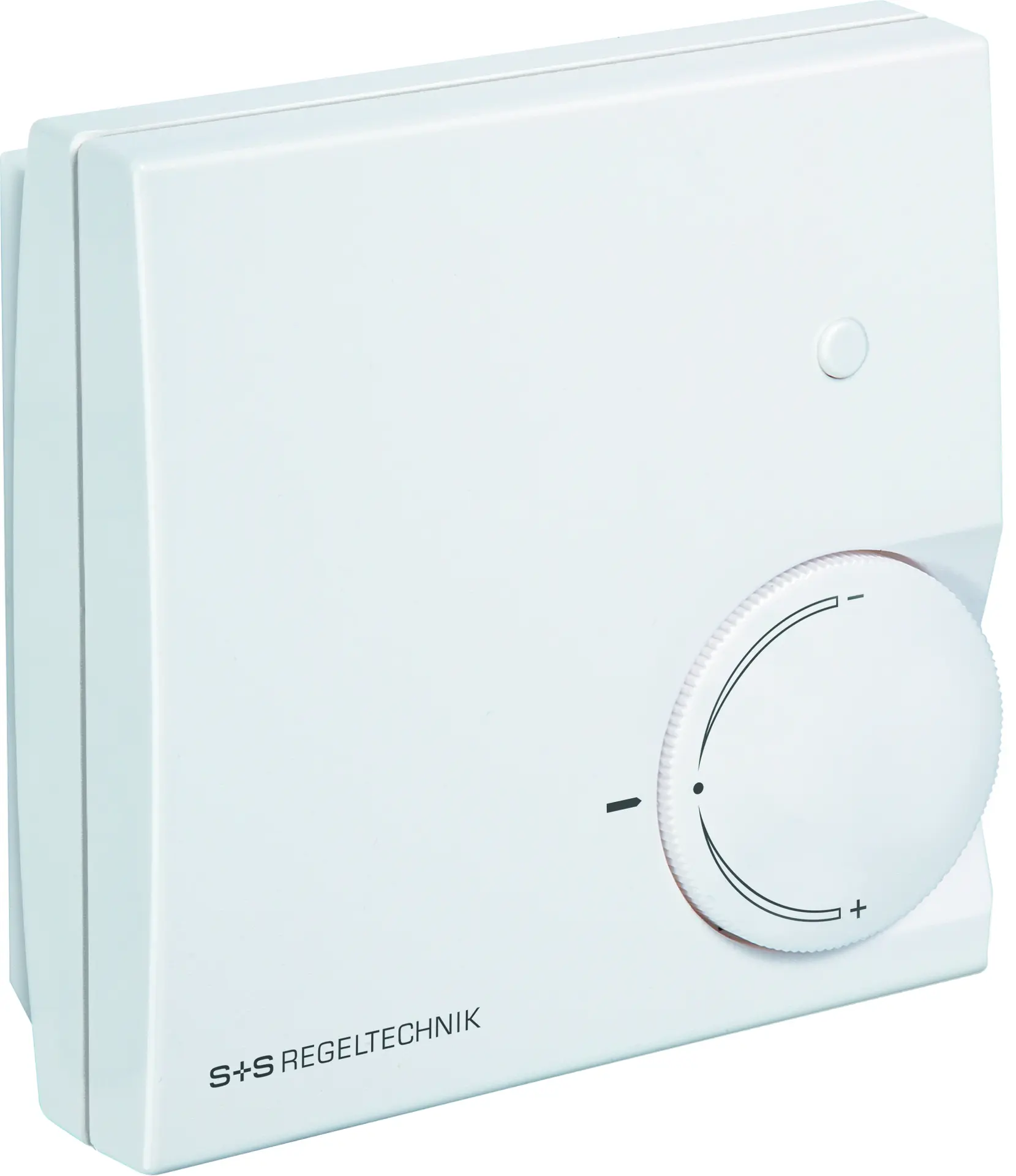

S+S REGELTECHNIK 1101-40B0-5033-345 RTF Pt1000 PU T Raumtemperatur

Kalibrierfähiger Raumtemperatur-Messwandler THERMASGARD RTM 1 mit Potentiometer und weiteren Bedienelementen optional und/oder mit kontinuierlichem Ausgang, mit/ohne optionalem Display zur Anzeige der Ist-Temperatur.

• Power consumption: < 1.0W24V DC; < 2.2VA24V AC
• Load resistance: RL > 5 kOhm
• Output, potentiometer : 0 - 10 V
• Connection type: 2-wire connection
• Testing current: approx. 1 mA
• Measuring range: –30...+70 °C
• Process connection : by screws
• Electrical connection : 0.14 - 1.5 mm² via terminal screws,
• Housing : plastic, material ABS,
• Housing dimensions : 98 x 98 x 33 mm (Baldur 2)
• Installation : wall mounting or on in-wall flush box, Ø 55 mm,
• Permissible air humidity: max. 90 % RH, non-precipitating air
• Protection class: III (according to EN 60 730) at UB = 24 V
• Protection type: IP 30 (according to EN 60 529)
