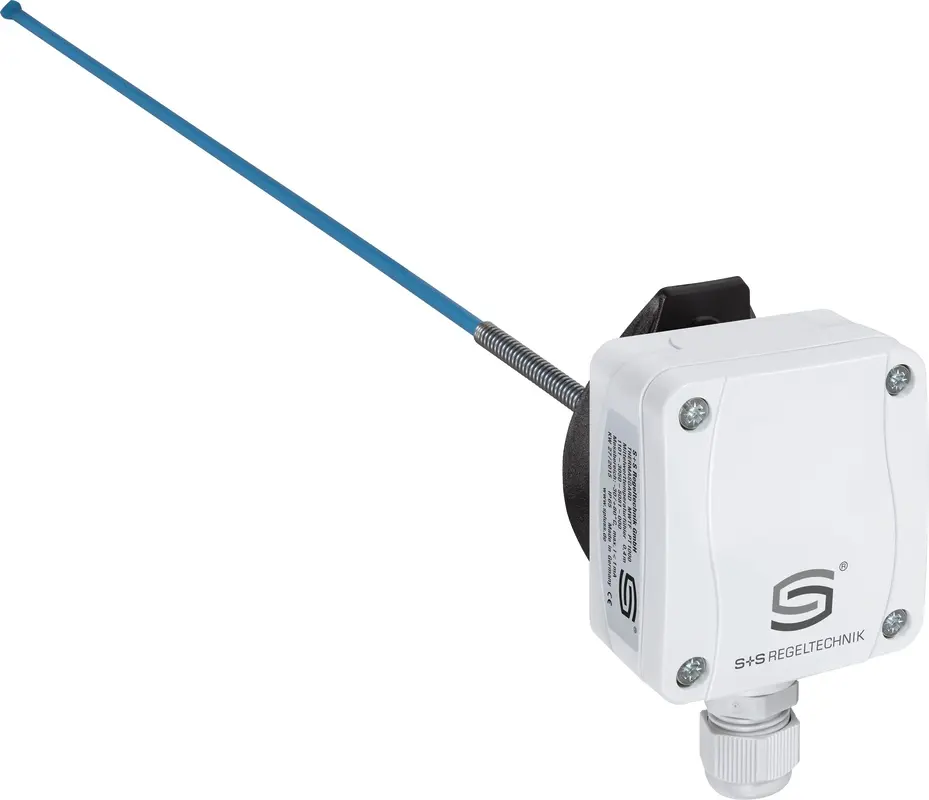

S+S REGELTECHNIK 1101-3132-0089-900 MWTM-I 0,4m Mittelwert

Kalibrierfähiger Mittelwert-Temperaturmessumformer THERMASGARD MWTM (Stabsensor) mit acht umschaltbaren Messbereichen, kontinuierlichem Ausgang, vollaktivem flexiblem Sensorstab zur Mittelwertmessung, kunststoffummanteltem Kupferschutzrohr (stabile Ausführung), Gehäuse aus schlagfestem Kunststoff u Gehäusedeckel mit Schnellverschlussschrauben.

• Power consumption: < 1,0 W/ 24 V DC
• Voltage supply: 15...36 V DC
• Working resistance: Ra (ohm) = (Ub -14 V)/ 0.02 A for I variant
• Sensor : Pt1000, DIN EN 60751, class B
• Connection type : 2- or 3-wire connection
• Ambient temperature : Measuring transducer –30...+70 °C
• Sleeve : stainless steel, 1.4571, V4A
• Probe: active along the entire sensor length
• Electrical connection: 0.14 - 1.5 mm²
• Housing dimensions: 72 x 64 x 37,8 mm (Tyr 1)
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• Installation: observe minimum bending radius of 35 mm and
• Permissible air humidity : < 95 % RH, non-precipitating air
• Protection class: III (according to EN 60 730)
• Output : 4...20 mA
• Measuring ranges: multi-range switching
• Process connection: by mounting flange, plastic
• Rod material: copper sensor tube, plastic-coated,
• Sensor and rod dimensions: Ø = 5.0 mm,
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Protection type : IP 65 (according to EN 60 529) Housing tested,
• Standards: CE conformity,
