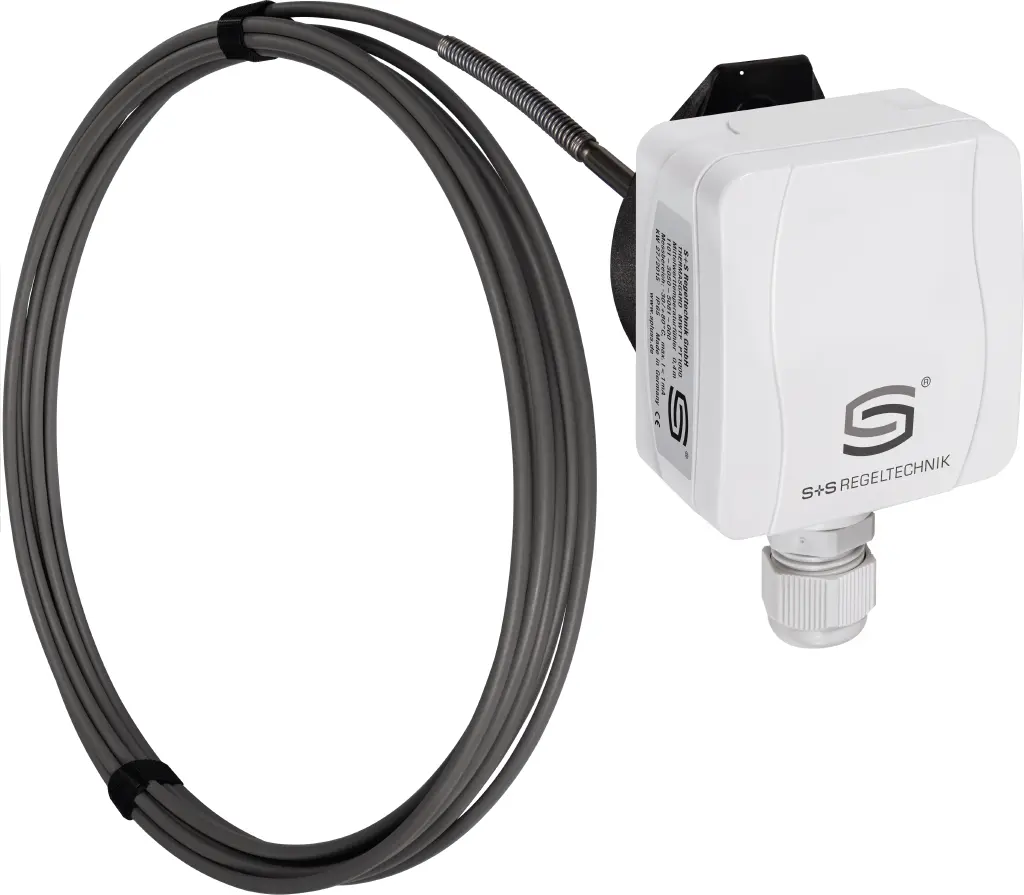

S+S REGELTECHNIK 1101-3131-0239-90K MWTM-SD-U 3m Mittelwert

Kalibrierfähiger Mittelwert-Temperaturmessumformer THERMASGARD MWTM (Stabsensor) mit acht umschaltbaren Messbereichen, kontinuierlichem Ausgang, vollaktivem flexiblem Sensorstab zur Mittelwertmessung, kunststoffummanteltem Kupferschutzrohr (stabile Ausführung), Gehäuse aus schlagfestem Kunststoff u Gehäusedeckel mit Schnellverschlussschrauben.

• Power consumption: < 1,0 W/ 24 V DC
• Voltage supply : 24 V AC/ DC (± 10 %)
• Load resistance: RL > 5 kOhm
• Sensor: Pt1000, DIN EN 60751, class B
• Connection type: 2- or 3-wire connection
• Ambient temperature: Measuring transducer –30...+70 °C
• Sleeve: stainless steel, 1.4571, V4A
• Probe : active along the entire sensor length
• Electrical connection : 0.14 - 1.5 mm²
• Housing dimensions : 72 x 64 x 37,8 mm (Tyr 1)
• Cable gland: M 16 x 1.5, including strain relief, exchangeable,
• Installation : observe minimum bending radius of 35 mm and
• Permissible air humidity: < 95 % RH, non-precipitating air
• Output: 0 - 10 V
• Protection class: III (according to EN 60 730)
• Measuring ranges: multi-range switching
• Process connection : by mounting flange, plastic
• Rod material : Verstärkter Thermoplastschlauch mit Knickschutzfeder
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing : plastic, UV-stabilised,
• Protection type: IP 54 (according to EN 60 529)*
• Standards: CE conformity,
