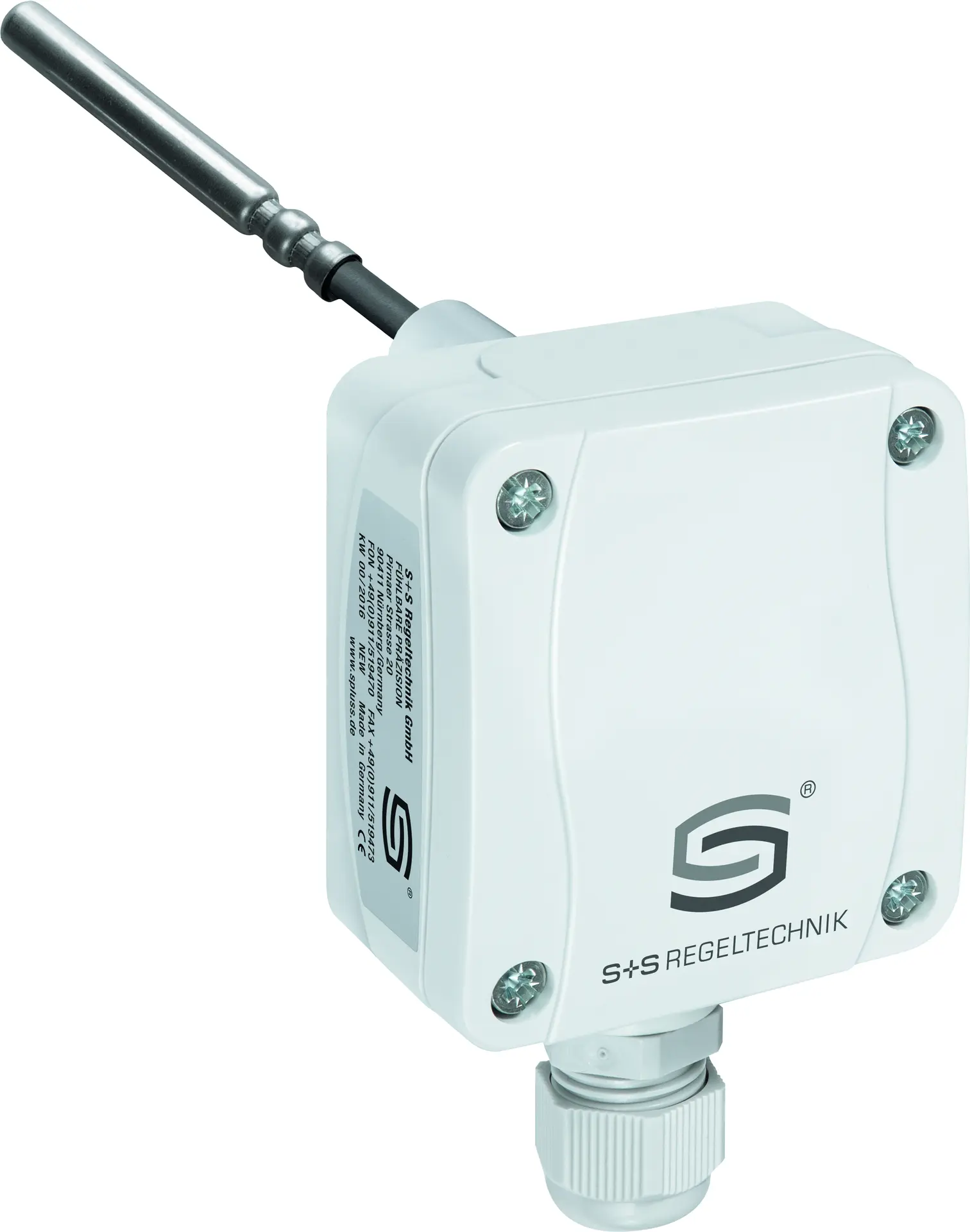

S+S REGELTECHNIK 1101-3060-9051-000 Tauch-/Einschraubtemperaturfühle

Patentiertes Qualitätsprodukt (Tauchsensor Patent-Nr. DE 10 2012 017 500.0)

• Data points: température [°C]
• Connection type: 2-wire connection
• Testing current: < 0.3 mA
• Measuring range: –50...+180 °C
• Ambient temperature: –20...+100 °C
• Insulating resistance : 100 MΩ,
• Electrical connection : 0.14 - 1.5 mm²
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing : plastic, UV-stabilised,
• Housing dimensions : 72 x 64 x 37,8 mm (Tyr 1)
• Cable gland: M 16 x 1.5, including strain relief, exchangeable,
• Cable length : 250 mm
• sensor cable : silicone, SiHF, 2 x 0.25 mm²,
• Permissible air humidity: < 95 % RH, non-precipitating air
• Protection class: III (according to EN 60 730)
• Protection type: IP 67 (according to EN 60 529) only housing!
