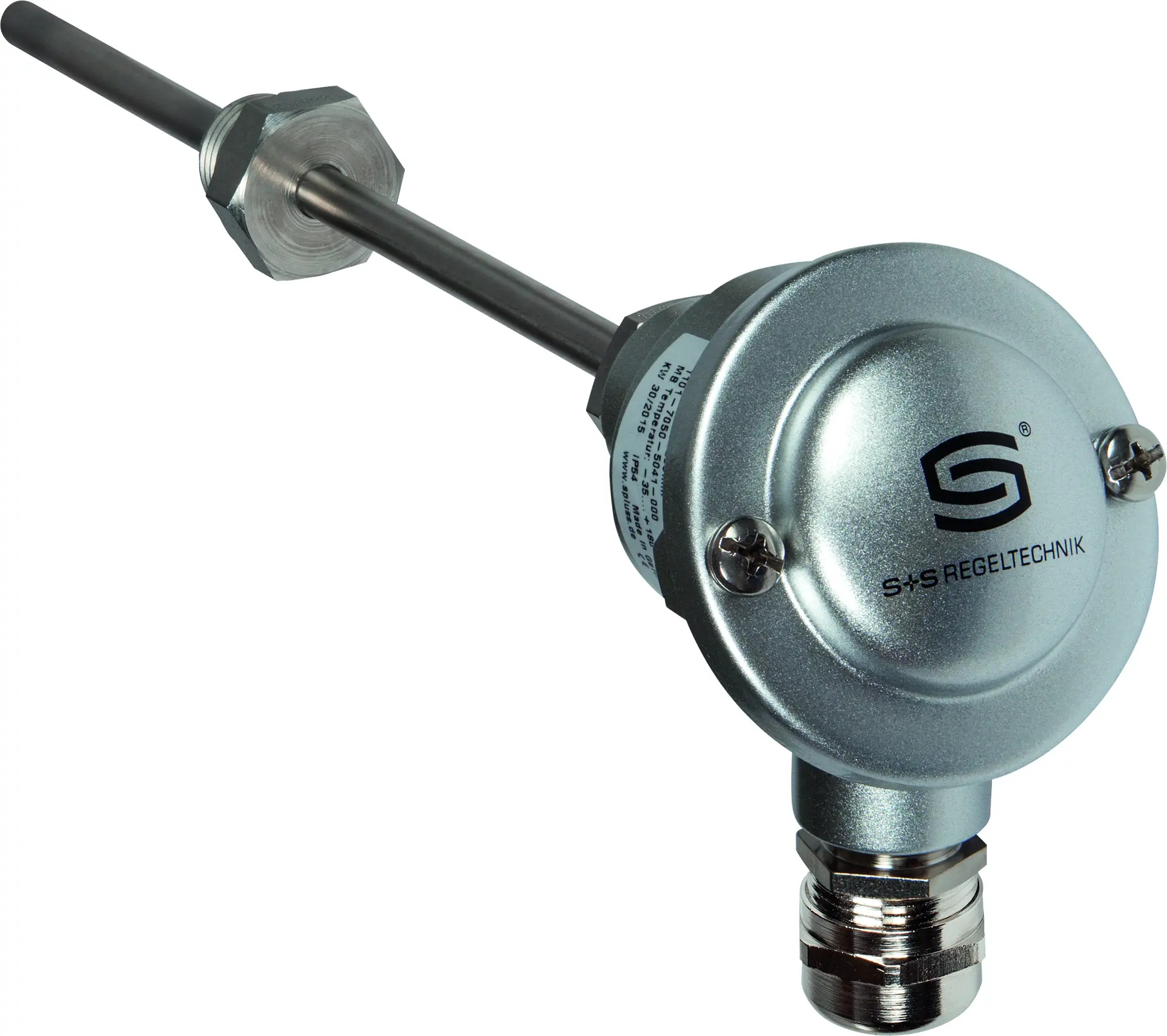

S+S REGELTECHNIK 1101-21D2-0059-810 RGTM2-I 250/80mm KV Einschraub

Der eichfähige THERMASGARD RGTM 2 Rauchgas-Einschraub-Temperaturmessumformer mit acht umschaltbaren Messbereichen, Halsrohr, auswechselbarem gefedertem Messeinsatz, geradem Schutzrohr, Anschlusskopf aus Aluminium und kontinuierlichem Ausgang zur Erfassung hoher Temperaturen in gasförmigen Medien , z.B. zur Abluft- oder Rauchgastemperaturmessung.

• Power consumption: < 1.0 VA/ 24 V AC/ DC; < 0.55 VA/ 24 V DC
• Temperature deviation: typically ± 0.2 K at +25 °C
• Voltage supply : 15...36 V DC
• Working resistance : máx. 750 Ohm/ 24 V DC
• Measuring range, temperature: – 20...+ 150 / 0... + 50 °C /+ 100 °C /+ 200 °C /+ 300 °C /+ 400 °C /+ 500 °C /+ 600 °C
• Sensor : Pt1000, DIN EN 60751, class B,
• Connection type: 2- or 3-wire connection
• Ambient temperature: Measuring transducer –30...+70 °C
• Process connection : screwed socket with G ½ " straight pipe thread
• Electrical connection: 0.2 - 1.5 mm², via push-in terminal
• Connecting head: form B, material aluminium,
• Permissible air humidity: < 95 % RH, non-precipitating air
• Protection class : III (according to EN 60 730)
• Output : 4...20 mA
• Measuring ranges : multi-range switching with 8 switchable measuring ranges,
• Protective tube: stainless steel, 1.4571, V4A,
• Protection type: IP 65 (according to EN 60 529)*
• Standards : CE conformity,
