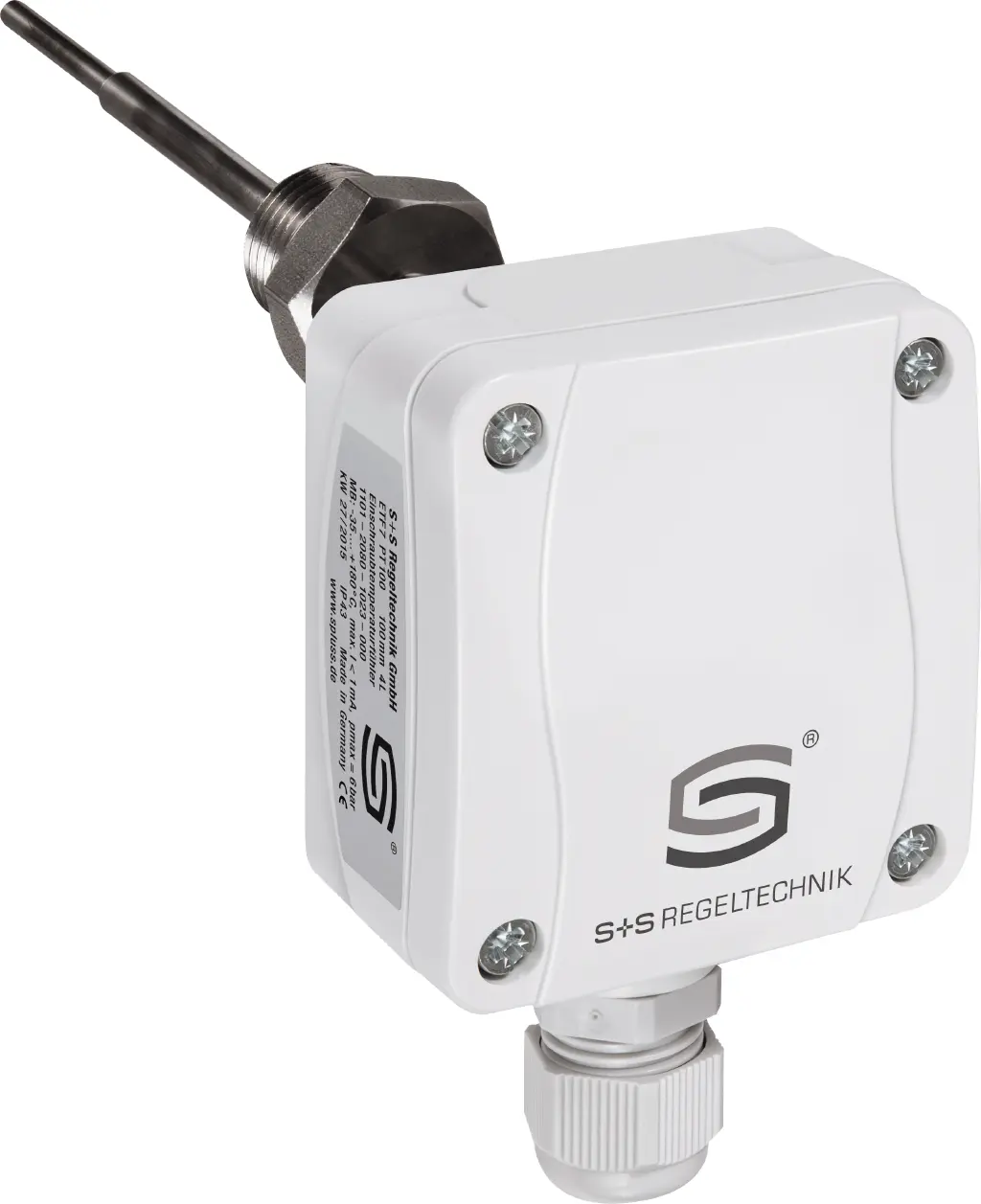

S+S REGELTECHNIK 1101-2081-0021-000 ETF7 NiTK 100mm Einschraubtemperaturfühle

Sehr schnell ansprechendes THERMASGARD ETF 7 Einschraub-Widerstandsthermometer oder Tauchtemperaturtransmitter mit passivem Ausgang, Halsrohr und einfach konischem Edelstahl-Schutzrohr, Gehäusedeckel mit Schnellverschlussschrauben.

• Data points: température
• Response times : t 0.5 = 2.8 s
• Response time: Very fast response time
• Measuring range: –35...+150 °C
• Process connection : screwed socket with G ½ " straight pipe thread
• Insulating resistance : 100 MΩ,
• Electrical connection : 0.14 - 2.5 mm²
• Housing dimensions : 72 x 64 x 37,8 mm (Tyr 1)
• Cable gland: M 16 x 1.5, including strain relief, exchangeable,
• Sensor: Ni1000Tk5000 (TCR=5000ppm/K)
• Connection type: 2-wire connection
• Permissible air humidity: < 95 % RH, non-precipitating air
• Testing current: < 0.3 mA
• Protection class: III (according to EN 60 730)
• Protection type: IP 65 (according to EN 60 529)*
• Protective tube: stainless steel, 1.4571, V4A,
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing : plastic, UV-stabilised,
