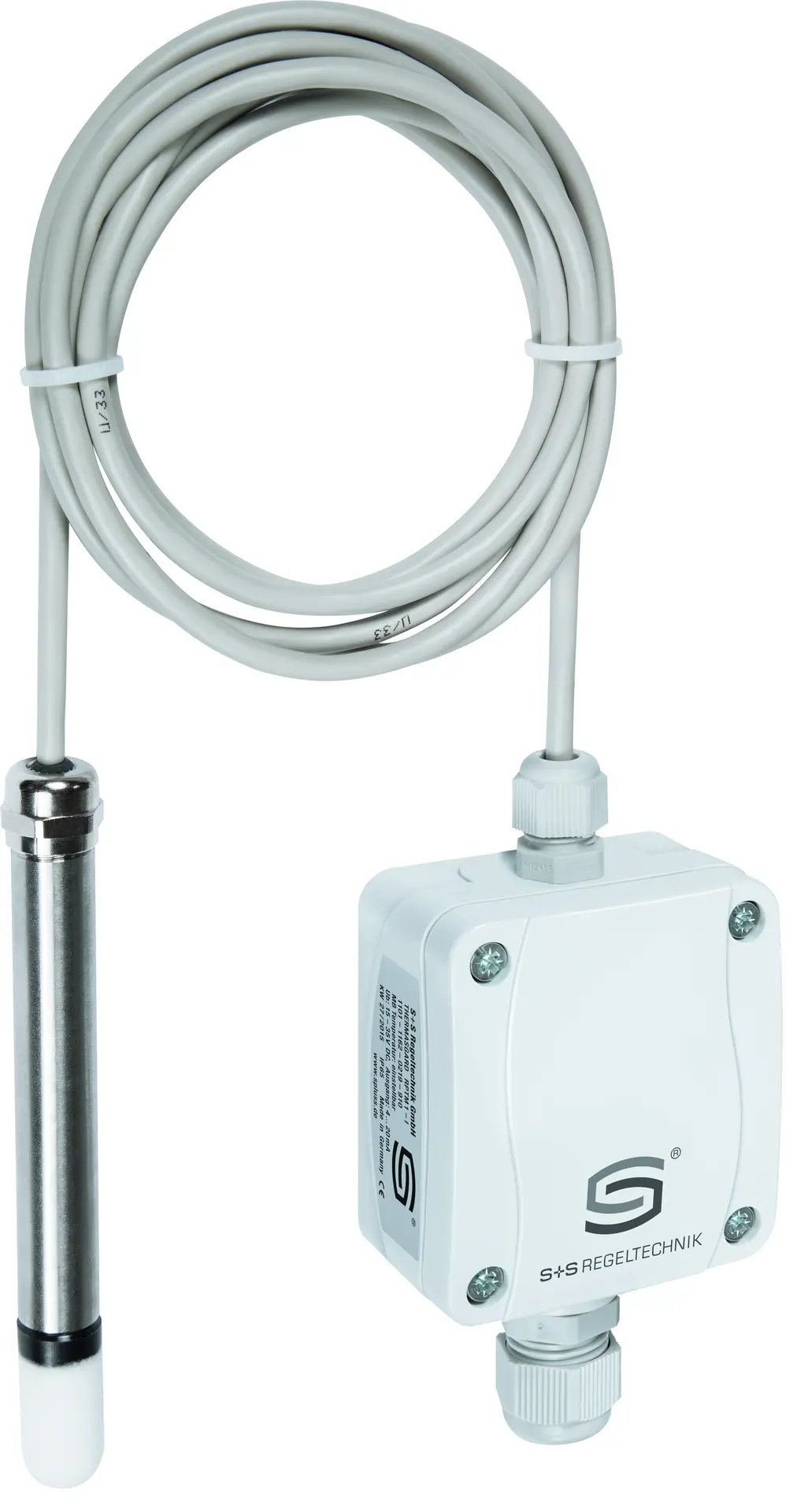

S+S REGELTECHNIK 1101-1161-0219-910 RPTM1-U Pendel

Kalibrierfähiger Raumpendel-Temperaturmessumformer THERMASGARD RPTM 1 (mit Hülse) mit acht umschaltbaren Messbereichen, kontinuierlichem Ausgang, im schlagfesten Kunststoffgehäuse mit Schnellverschlussschrauben, wahlweise mit/ohne Display, Kabelfühler mit Edelstahlhülse und Kunststoff-Sinterfilter (austauschbar).

• Power consumption: < 1,0 W/ 24 V DC
• Voltage supply: 24 V AC/ DC (± 10 %)
• Temperature deviation: typically ± 0.2 K at +25 °C
• Load resistance : RL > 5 kOhm
• Sensor: Pt1000, DIN EN 60751, class B
• Connection type : 2- or 3-wire connection
• Ambient temperature: measuring transducer –5...+60 °C
• Connection cable: PVC; LiYY, 1.5 m
• Protective tube : stainless steelV2A (1.4301), Ø = 16 mm, L = 142 mm
• Electrical connection: 0.14 - 1.5 mm² via terminal screws
• Cable gland : M 16 x 1.5, including strain relief, exchangeable,
• sensor cable: PVC, H03VV-F, 2 x 0.5 mm²,
• Humidity: < 95 % RH, non-precipitating air
• Protection class: III (according to EN 60 730)
• Protection type : IP 65 (according to EN 60 529) Housing tested,
• Output: 0 - 10 V
• Measuring ranges: multi-range switching with 8 switchable measuring ranges
• Cable connection: cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or
• Housing : plastic, UV-stabilised,
• Housing dimensions : 72 x 64 x 37,8 mm (Tyr 1)
• Standards : CE conformity,
