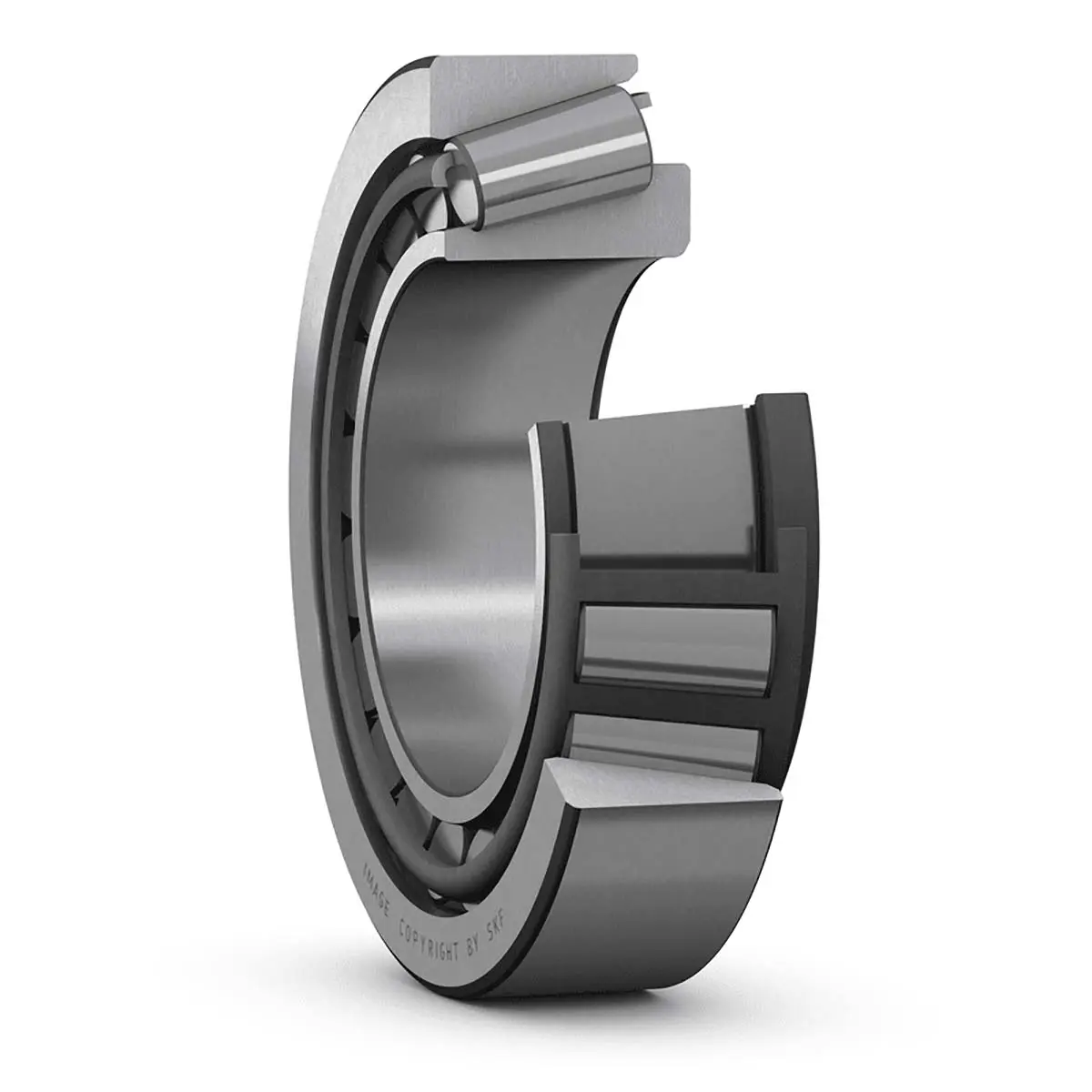

SKF Rollenlager Konus 443 KN / Außen-Ø 260 mm Außen-ø 765 kN 47.85 mm 2200rpm, Innen-Ø 190 mm

SKF Tapered Roller Bearing, Single Row - 32932 Our SKF single row tapered roller bearing is designed to accommodate combined loads such as simultaneously acting radial and axial loads. This SKF bearing has a 190 mm bore diameter and 45 mm total bearing width and is the perfect solution for rigid bearing applications. Features & Benefits • Low friction and enhanced operational reliability • Can be adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved • Running-in period with reduced temperature peaks • Features a 260 mm outside diameter • Separable and interchangeable • The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). Furthermore, the separable components are interchangeable. This facilitates mounting, dismounting and also maintenance inspection routines • 227.49 mm inner ring shoulder diameter • 45 mm width of the inner ring and 34 mm width of the outer ring How does a tapered roller bearing work? The projection lines of the raceways meet at a common point on the bearing axis which provides a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity tapered roller bearing increases with an increasing contact angle. The size of the contact angle, which is usually between 10° and 30° is related to the calculation factor of the larger the value.Die einreihigen Kegelrollenlager SKF sind für kombinierte Lasten ausgelegt, d. H. Gleichzeitig wirkende radiale und axiale Lasten. Die Projektionslinien der Laufbahnen treffen an einem gemeinsamen Punkt auf der Lagerachse aufeinander, um eine echte Rollbewegung und damit geringe Reibungsmomente im Betrieb zu gewährleisten. Die axiale Belastbarkeit von Kegelrollenlagern steigt mit zunehmendem Kontaktwinkel. Die Größe des Kontaktwinkels, die in der Regel zwischen 10° und 30° liegt, hängt vom Berechnungsfaktor e ab,
