6SL3210-1PE32-1AL0
Technische Daten
- ECCN
- EAR99
- Gewicht
- 74,8 kg
- Maximum output frequency
- 550 Hz
- Maximum output voltage
- 550 V
- Nominal output current
- 205 A
- Nominal power rating
- 90 kW
- Processing time
- 1-2
Produktbeschreibung

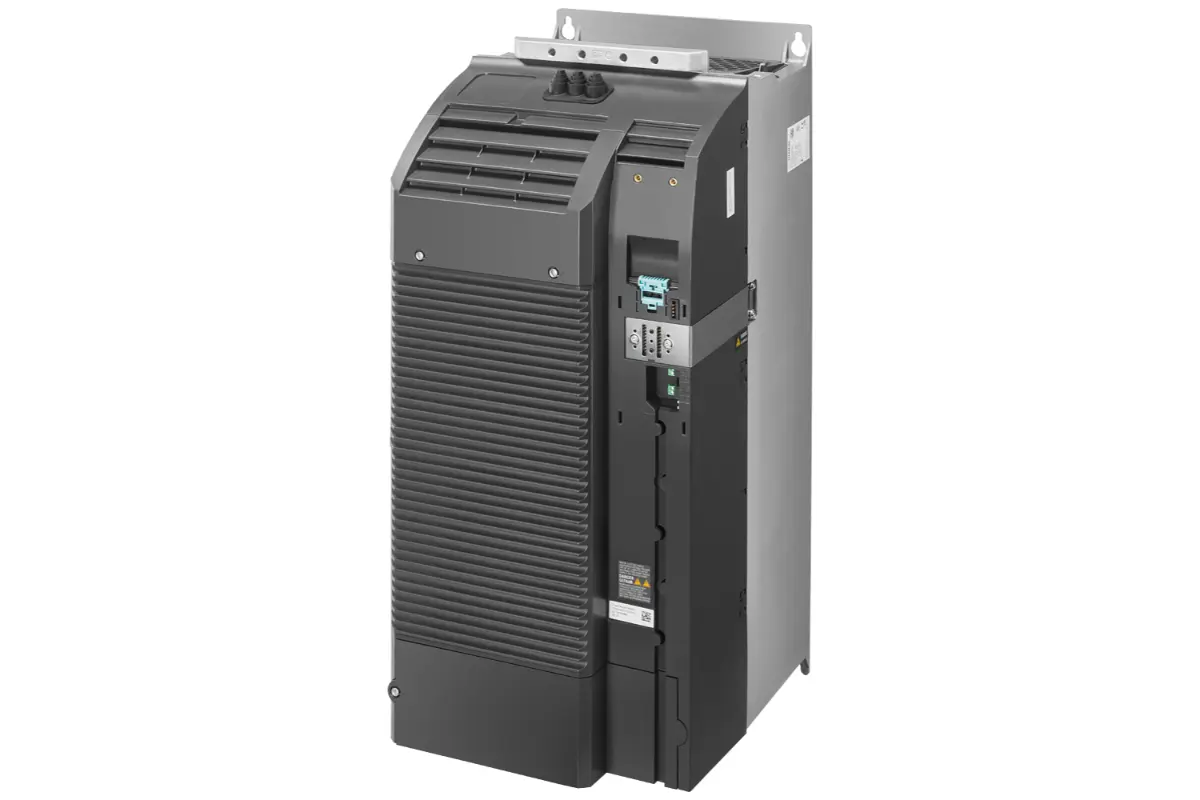

Siemens 4042948668245 SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 90KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 110kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
Produktangebot
Nicht vorrätig
Sichere Zahlung
Rechnung
Schneller Versand
etc.
Fragen zum Produkt?
Weitere Angebote
Kennzeichnungen
- Artikeltyp
- Drives
- GTIN
- 4042948668245
