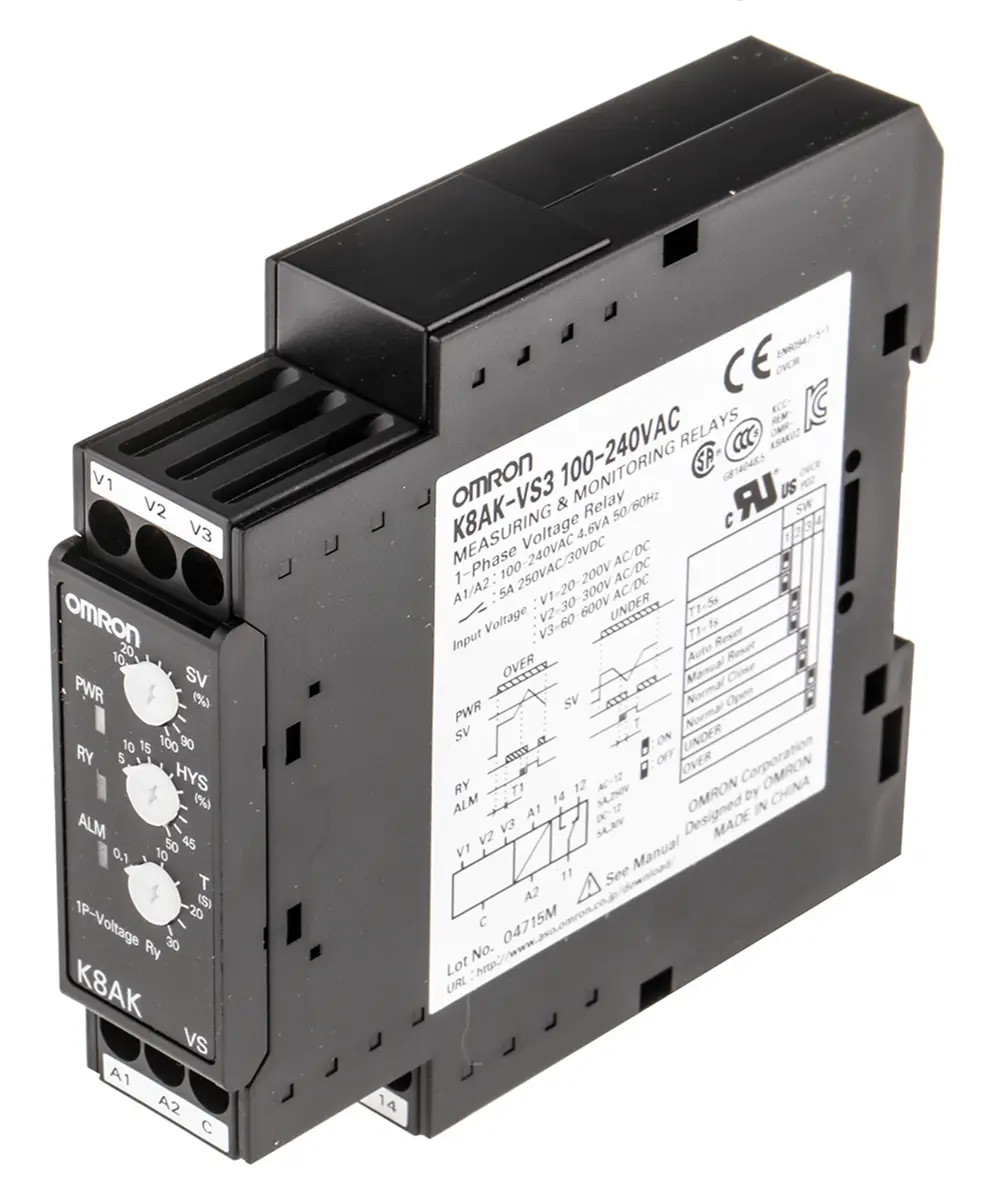

Omron K8AK-VS Überwachungsrelais 20 → 200 V ac/dc, 30 → 300 V ac/dc, 60 → 600V ac/dc 1-phasig,

Überwachungsanwendungen = Spannung
Elektrische Phasen = 1
Kontaktanordnung = 1-poliger Wechsler
Spannungsempfindlichkeit = Überspannung, Unterspannung
Montage Typ = DIN-Schienen
Verzögerungszeit = 0,1 → 30s
Serie = K8AK-VS
Betriebstemperaturbereich = +60°C

K8AK-VS3 Monitoring Relay. • Monitors over and under voltages. • Manual reset and auto resetting supported by 1 relay. • One SPDT output relay. 5 A at 250 V ac (resistive load) • Can be normally closed or normally open. NC/NO. • LED output status indicator. • Process control signal (0 to 10 V) current splitter input supported. • Input frequency 40 Hz to 500 Hz • Inputs isolated from the power supply K8AK-VS3 100-240 VAC Model. • Monitoring Relay. • Power supply 100 to 240 V ac. • Setting range 20 to 200 V ac/dc, 30 to 300 V ac/dc, 60 to 600 V ac/dc. Features and Benefits. • Power supply (isolated) 24 V ac/dc, 100 to 240 V ac. • Manual/ Automatic reset (switchable) • Manual reset – Turn OFF the power supply for minimum of 1 sec. • Power on lock time 1 s or 5 s (using DIP switch) • Green LED Power (PWR) • Yellow LED Relay output (RY) • Red LED Relay output (ALM) • One SPDT relay (NO/NC) using DIP switch • DIN Rail Mounted • Weight 150 g • Case material PC and ABS, UL 94 V-0 • Colour N1.5 • Protection IP20 What is a Monitoring / Measuring Relay? A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds. Types of Monitoring Relays Available? • Motor protection relays • Temperature monitoring relays • Water level control rel
