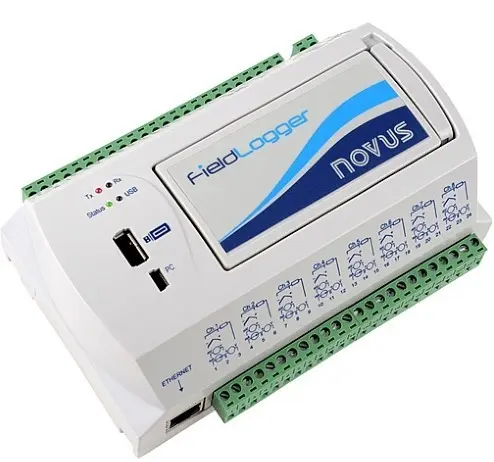

Fieldlogger, RS485 master/slave, 24V

• 8 Universal Analog Input Channels: Supports multiple sensor types, including thermocouples, Pt100, Pt1000, voltage signals (V, mV), and current (mA). With reading and recording rates of up to 1000 readings per second and 24-bit A/D conversion resolution, it guarantees precise and detailed monitoring.
 • 8 Configurable Digital I/Os and 2 Relay Outputs: The digital I/Os can be individually configured as inputs or outputs, and the relay outputs (NO, NC, common) allow local control of devices or alarms.
 • High-Performance Storage and Logging: The FieldLogger has memory to store up to 512k of data, with the possibility of expansion via an SD card, allowing the logging of up to 100 channels at configurable rates. Data can be downloaded through software or via a USB-host interface using a flash drive.
