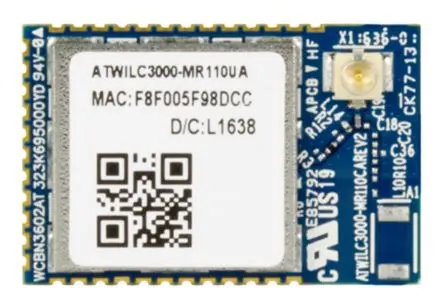

Microchip WLAN-Modul 3.6 V WPA, WEP, WPA2 IEEE 802.11 b/g/n

ATWILC3000 is a single chip IEEE 802.11 b/g/n RF/Baseband/MAC link controller and Bluetooth 5. The ATWILC1000 connects to Microchip AVR/SMART MCUs, SMART MPUs, and other processors with minimal resource requirements with simple SPI/SDIO-to-Wi-Fi and UART-to-Bluetooth interfaces. The ATWILC3000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP.20MHz (1x1) Wi-Fi plus Bluetooth 5 Low Energy Module Single spatial stream in 2.4GHz ISM band Integrated PA and T/R Switch Superior Sensitivity and Range via advanced PHY signal processing Wi-Fi Direct and Soft-AP support Supports Personal & Enterprise WEP, WPA, WPA2 Security On-chip memory management engine to reduce host load SPI, SDIO, I2C, and UART host interfaces HCI (Host Control Interface) via high speed UART Operating temperature range of -40C to +85C
