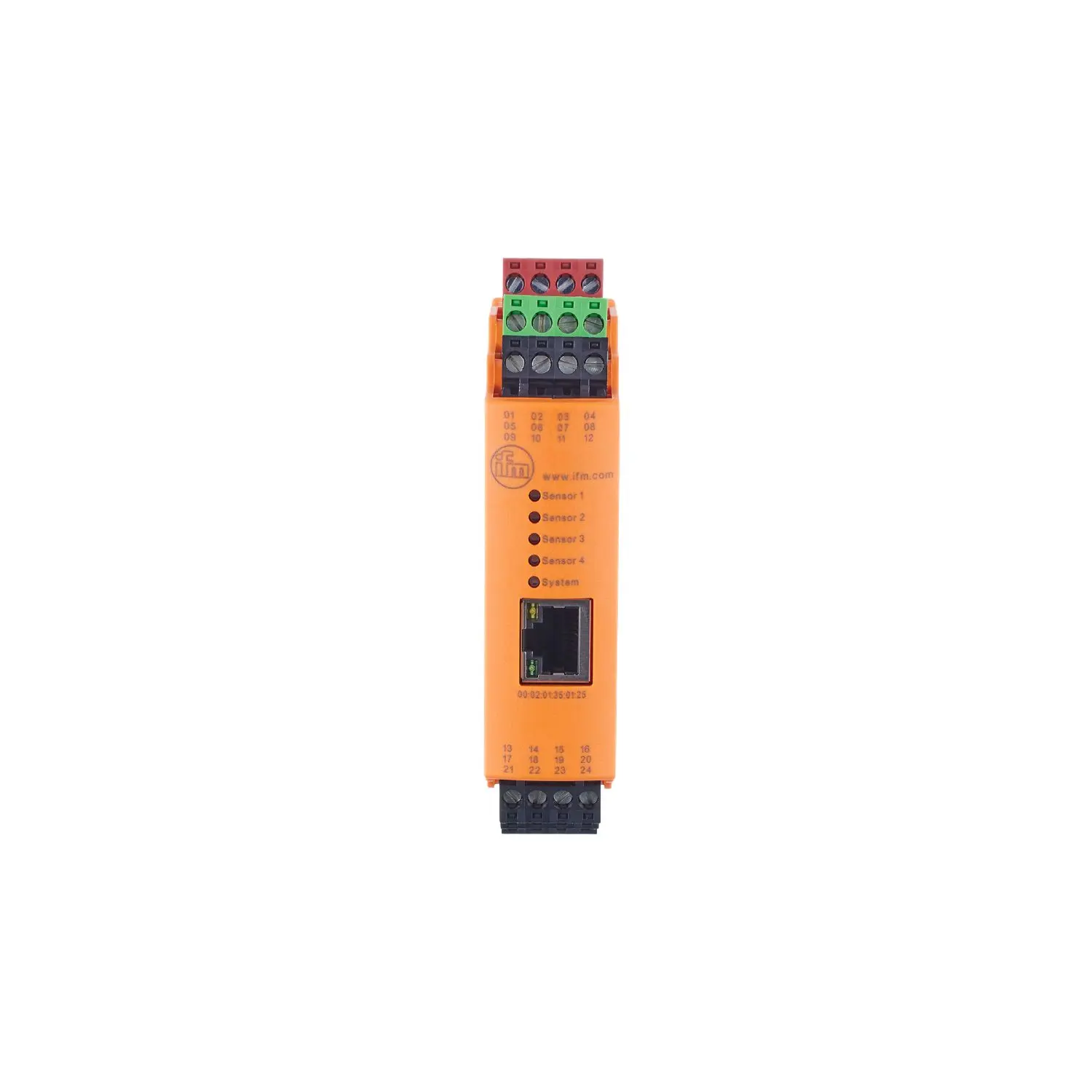

ifm Electronic VSE002 Diagnoseelektronik für Schwingungssensoren

Product characteristics

• Frequency range [Hz]: 0.1...12000
• Communication interface: Ethernet

Application

• Design: parameter setting via PC software VES004
• Application: continuous vibration monitoring

Electrical data

• Operating voltage tolerance [%]: 20
• Operating voltage [V]: 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric)
• Current consumption [mA]: 200; ((24 V DC))
• Protection class: III

Inputs / outputs

• Total number of inputs and outputs: 8; (configurable)
• Number of inputs and outputs: Number of analogue inputs: 2; number of dynamic inputs: 4; Number of digital outputs: 2; Number of analogue outputs: 1

Inputs

• Total number of inputs: 6
• Number of analogue inputs: 2
• Analogue input (current) [mA]: 4...20
• Resolution of analogue input: 12
• Number of dynamic inputs: 4
• Dynamic input - signal: 0...10 mA / IEPE / 4...20 mA
• Dynamic input - resolution [bit]: 16
• Dynamic input - frequency range [Hz]: 0,1...12000
• Dynamic input - sampling rate [kSamples]: 100

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal
• Electrical design: PNP
• Number of digital outputs: 2; (configurable)
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 100
• Number of analogue outputs: 1; (configurable)
• Analogue current output [mA]: 4...20
• Max. load [Ω]: 500
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Measuring/setting range

• Frequency range [Hz]: 0.1...12000

Interfaces

• Communication interface
