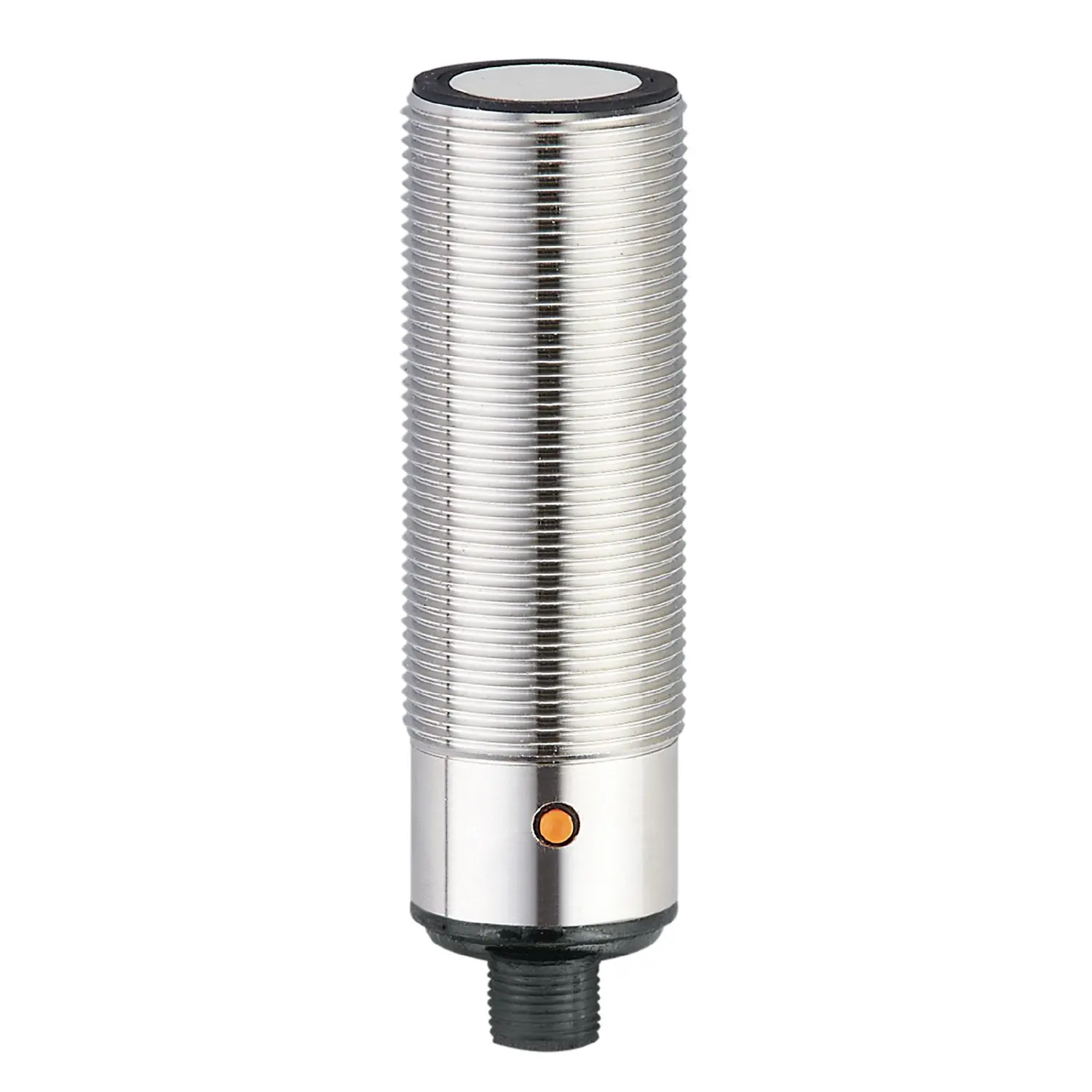

ifm Electronic UIT509 Ultraschallsensor

Product characteristics

• Electrical design: NPN
• Output function: normally open / normally closed; (parameterisable)
• Sensing range [mm]: 250...3500; (Target: 200 x 200 mm)
• Housing: threaded type
• Dimensions [mm]: M30 x 1.5 / L = 103

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 30
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: < 0.3
• Converter frequency [kHz]: 112

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2

Outputs

• Total number of outputs: 2
• Electrical design: NPN
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.2
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 1
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: 250...3500; (Target: 200 x 200 mm)
• Blind zone [mm]: 250
• Angle of aperture cylindrical [°]: 12; (±2)
• Max. deviation from the 90° angle sensor/object [°]: ± 4

Accuracy / deviations

• Temperature compensation: yes
• Hysteresis [%]: < 3
• Switch point drift [%]: -5...5
• Repeatability: 1 %
• Resolution [mm]: 3
• Notes on the accuracy / deviation: The indicated values are reached after a warm-up time of min. 20 minutes

Operating conditions

• Ambient temperature [°C]: -20...70
• Storage temperature [°C]: -30...80
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 3 V, EN 55011, Class A
