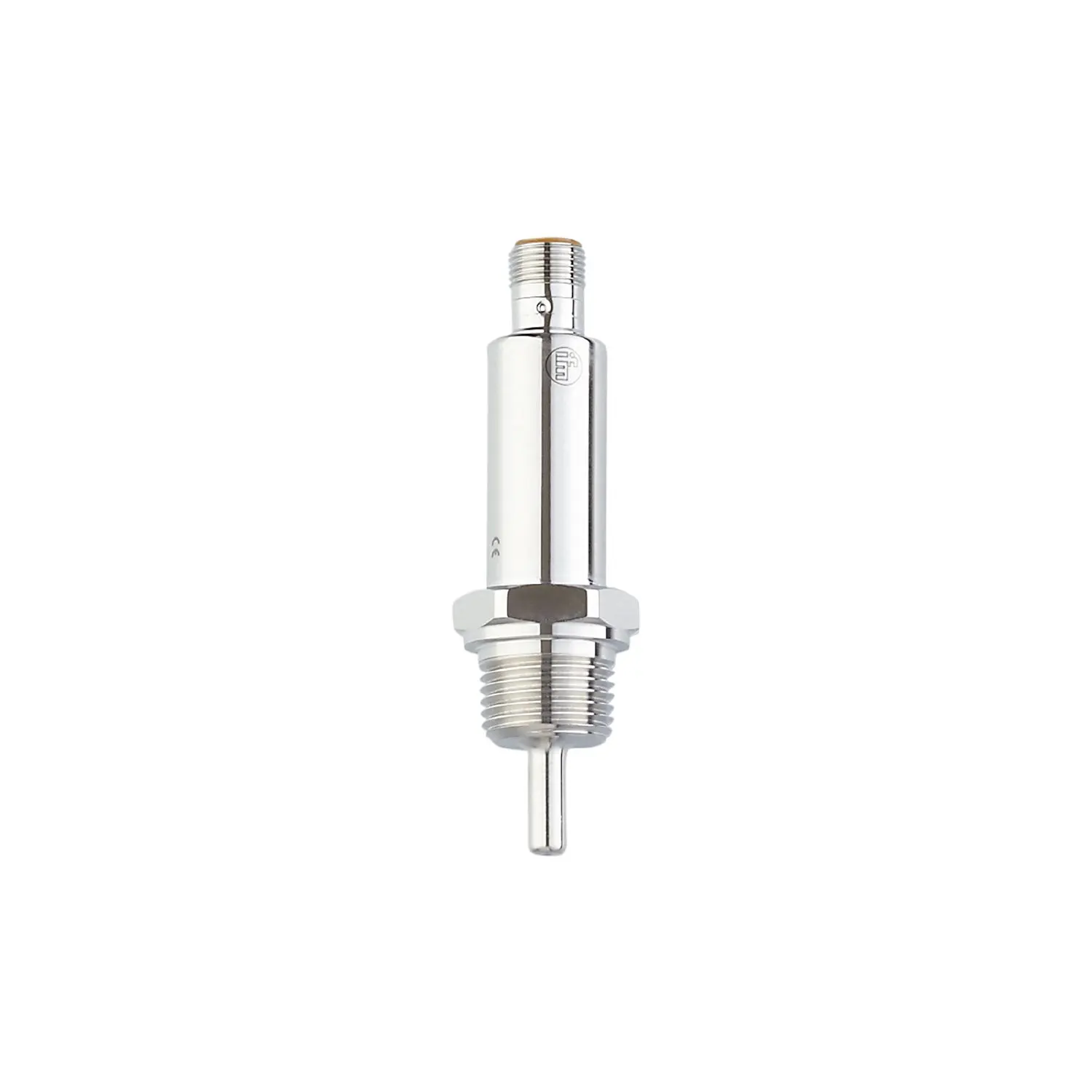

ifm Electronic TV7303 Temperaturschalter mit IO Link

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2
• Measuring range [°F]: -58...302
• Communication interface: IO-Link
• Process connection: threaded connection 1/2" NPT
• Installation length EL [mm]: 30

Application

• Special feature: Gold-plated contacts
• Measuring element: 1 x Pt 1000; (to DIN EN 60751, class A)
• Media: liquids and gases
• Pressure rating [bar]: 300
• Note on pressure rating: sensor
, When mounted in adapters the specifications of the adapter data sheet apply.

Electrical data

• Operating voltage [V]: 18...32 DC; ("supply class 2" to cULus)
• Current consumption [mA]: < 50
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 1
• Integrated watchdog: yes

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2

Outputs

• Total number of outputs: 2
• Output signal: switching signal; IO-Link; (configurable)
• Electrical design: PNP/NPN
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100

Measuring/setting range

• Measuring range [°F]: -58...302
• Set point SP [°F]: -57.6...302
• Reset point rP [°F]: -58...301.6
• In steps of [°F]: 0.1
Resolution
• Resolution of switching output [K]: 0.1

Accuracy / deviations

• Switch point accuracy [K]: ± 0,3
• Temperature drift per 10 K [K]: 0.1 **)

Response times

• Dynamic response T05 / T09 [s]: 1 / 3; (to DIN EN 60751)

Software / programming

• Parameter setting options: hysteresis / window; normally open / normally closed; switching
