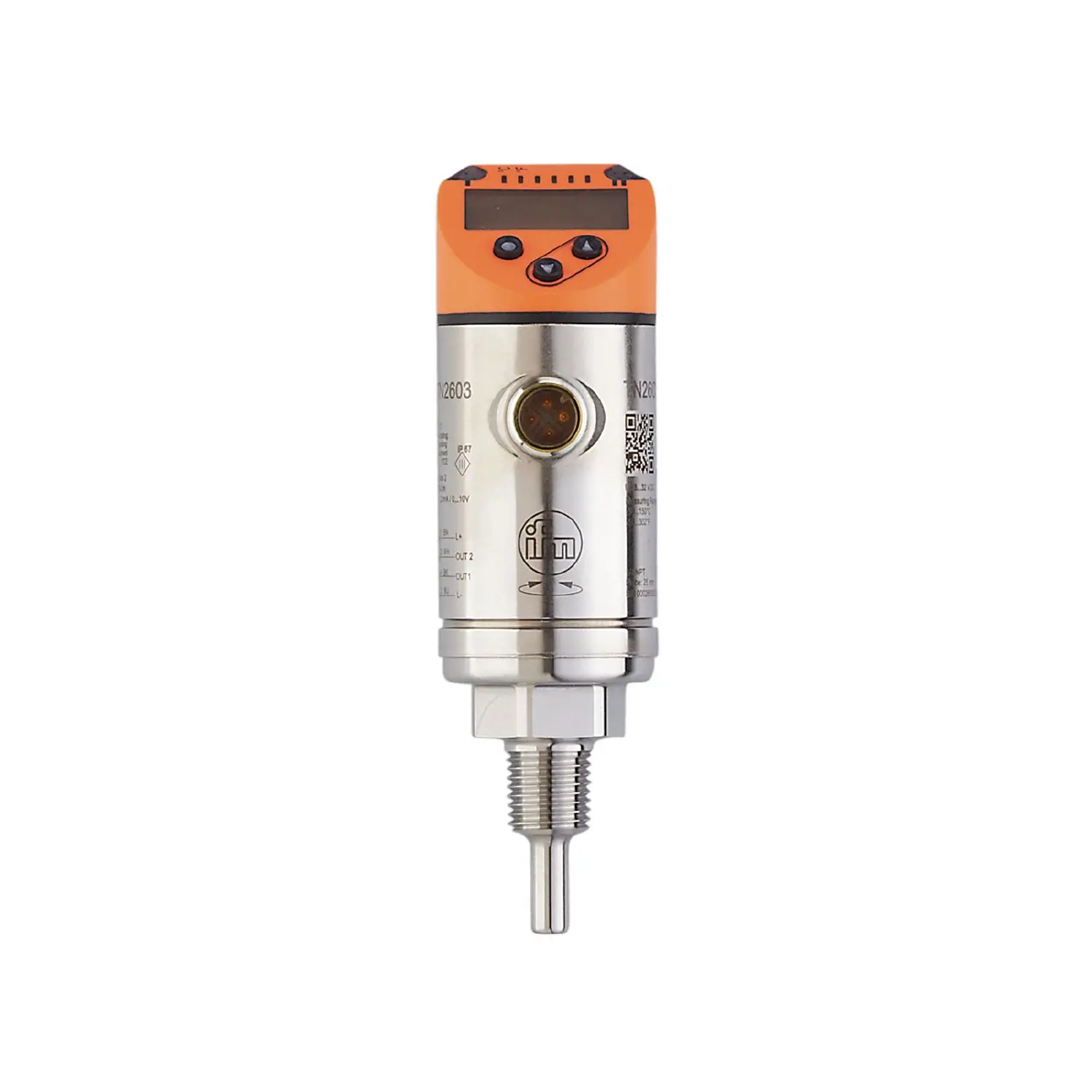

ifm Electronic TN2603 Temperatursensor mit Display

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range: -50...150 °C, -58...302 °F
• Communication interface: IO-Link
• Process connection: threaded connection 1/4" NPT
• Installation length EL [mm]: 25

Application

• Special feature: Gold-plated contacts
• Measuring element: 1 x Pt 1000; (to DIN EN 60751, class A)
• Media: liquids and gases
• Pressure rating [bar]: 400

Electrical data

• Operating voltage [V]: 18...32 DC; ("supply class 2" to cULus)
• Current consumption [mA]: < 50
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 1
• Integrated watchdog: yes

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; IO-Link; (configurable)
• Electrical design: PNP/NPN
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20
• Max. load [Ω]: 500
• Analogue voltage output [V]: 0...10
• Min. load resistance [Ω]: 2000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Measuring/setting range

• Measuring range: -50...150 °C, -58...302 °F
• Factory setting: 0...300 °F
• Set point SP: -49.8...150 °C, -57.6...302 °F
• Reset point rP: -50...149.8 °C, -58...301.6 °F
• Analogue start point: -50...145 °C, -58...293 °F
• Analogue end point: -45...150 °C, -
