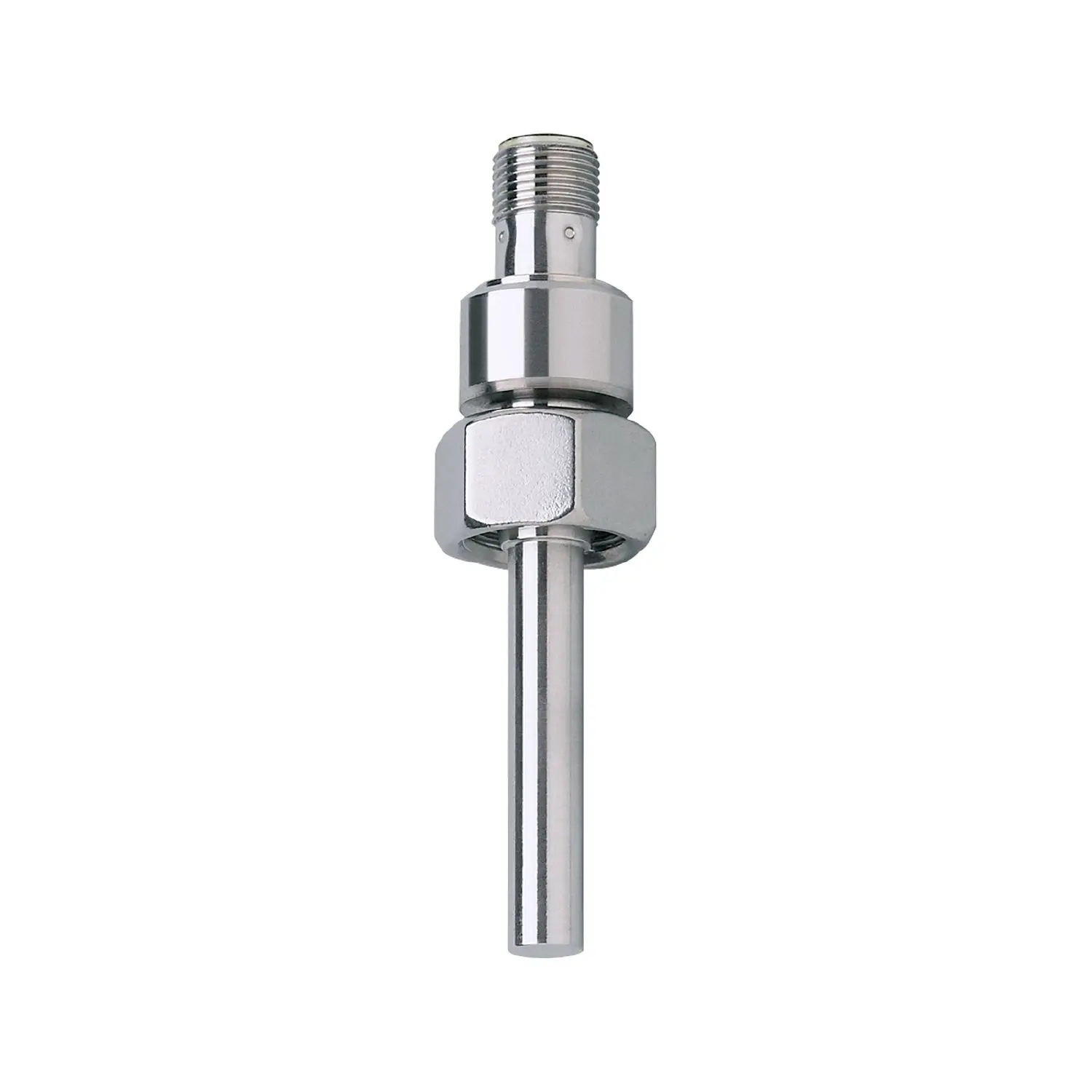

ifm Electronic TM9550 Temperatursensor mit Prozessanschluss

Product characteristics

• Measuring range: -40...125 °C, -40...257 °F
• Process connection: threaded connection M18 x 1,5 internal thread
• Installation length EL [mm]: 60

Application

• Special feature: Gold-plated contacts
• Measuring element: 1 x Pt 1000; (to DIN EN 60751, class B)
• Media: liquids and gases
• Pressure rating [bar]: 300
• Minimum installation depth [mm]: 15

Electrical data

• Protection class: III

Measuring/setting range

• Probe length L [mm]: 44
• Measuring range: -40...125 °C, -40...257 °F

Accuracy / deviations

• Accuracy [K]: ± (0,30 K + 0,005 x|t|)

Response times

• Dynamic response T05 / T09 [s]: 1 / 3; (to DIN EN 60751)

Operating conditions

• Ambient temperature [°C]: -25...80
• Storage temperature [°C]: -40...100
• Protection: IP 68; IP 69K

Tests / approvals

• MTTF [years]: 22831

Mechanical data

• Weight [g]: 81.5
• Materials: stainless steel (1.4404 / 316L)
• Materials (wetted parts): stainless steel (1.4404 / 316L)
• Process connection: threaded connection M18 x 1,5 internal thread
• Probe diameter [mm]: 8.2
• Installation length EL [mm]: 60

Remarks

• Remarks: operating voltage "supply class 2" according to cULus
, The values for accuracy apply to flowing water.
• Pack quantity: 1 pcs.

Electrical connection

• Connection: Connector: 1 x M12; coding: A; Contacts: gold-plated

TM9550-00 — 13.04.2023 —
