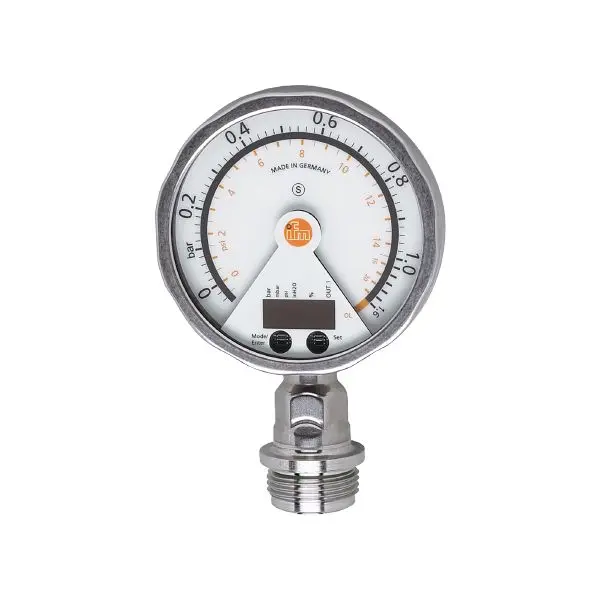

ifm Electronic SA5020 Drucktransmitter

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1
• Process connection: threaded connection M18 x 1,5 internal thread

Application

• Special feature: Gold-plated contacts
• Installation: Recommended for pipe diameters; ( 15...51 mm)
• Media: air
• Medium temperature [°C]: -20...90
• Pressure rating [bar]: 100
• Pressure rating [MPa]: 10
• MAWP (for applications according to CRN) [bar]: 100

Electrical data

• Operating voltage [V]: 18...30 DC; (to SELV/PELV)
• Current consumption [mA]: < 100
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 10

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; frequency signal; IO-Link; (configurable)
• Electrical design: PNP/NPN
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20; (scalable)
• Max. load [Ω]: 350
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes
• Frequency of the output [Hz]: 0...1000

Measuring/setting range

• Probe length L [mm]: 45
• Operating mode: relative; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative)
• Display range [m/s]: 0...36
• Resolution [m/s]: 0.2
• Set point SP [m/s]: 2...30
• Reset point rP [m/s]: 0.6...28.6
• Analogue start point ASP [m/s
