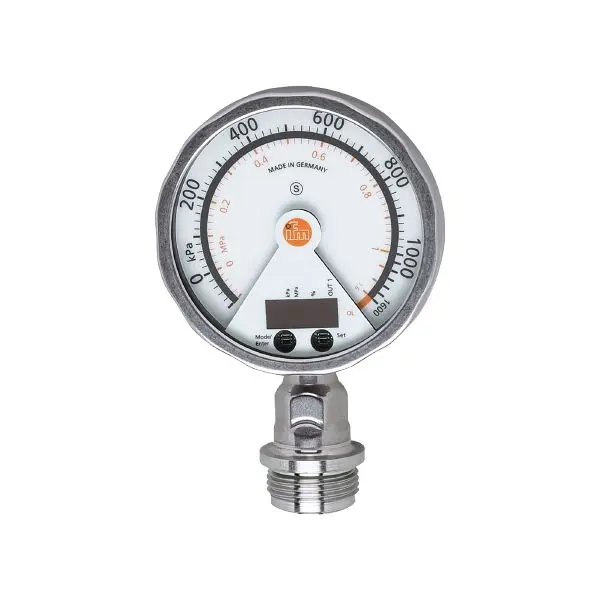

ifm Electronic SA4110 Drucktransmitter

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1
• Process connection: Ø 8 mm

Application

• Special feature: Gold-plated contacts
• Media: water; glycol solutions; air; oils
• Note on media: low-viscosity oils with viscosity: ≤ 40 mm²/s (104 °F)
, high-viscosity oils with viscosity: > 40 mm²/s (104 °F)
• Medium temperature [°F]: -4...212
• Pressure rating [bar]: 50
• Pressure rating [psi]: 725
• MAWP (for applications according to CRN) [bar]: 50

Electrical data

• Operating voltage [V]: 18...30 DC
• Current consumption [mA]: < 100
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 10

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; frequency signal; IO-Link; (configurable)
• Electrical design: PNP/NPN
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20; (scalable)
• Max. load [Ω]: 350
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes
• Frequency of the output [Hz]: 0...1000

Measuring/setting range

• Probe length L [mm]: 100
• Operating mode: relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative)

Temperature monitoring

• Measuring range [°F]: -4...212
• Resolution [°F]: 0.5
