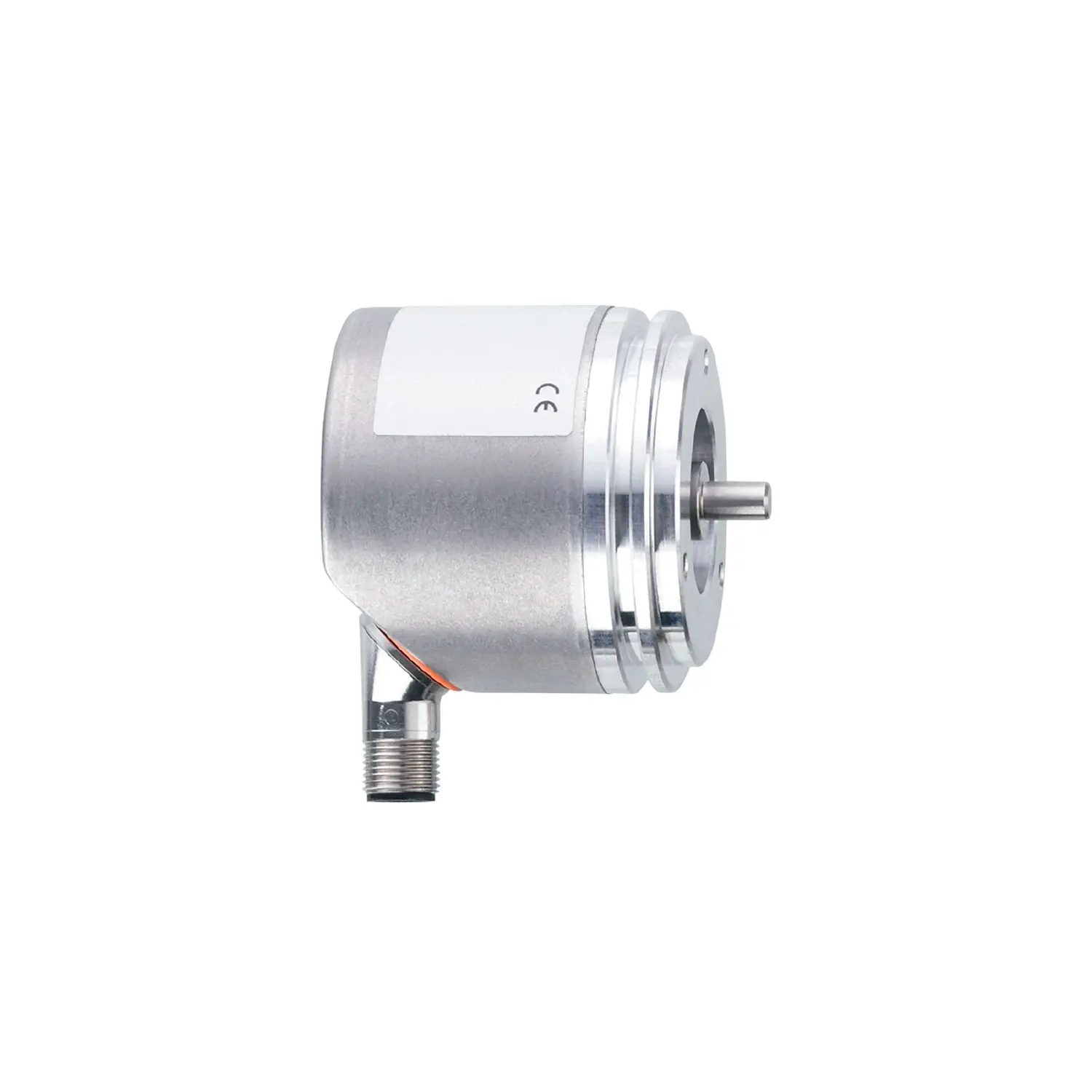

ifm Electronic RMU400 Absoluter Multiturn Drehgeber in 24 Bit Ausführung

Product characteristics

• Resolution: 4096 steps; 4096 revolutions
• Communication interface: SSI data interface
• Shaft design: solid shaft
• Shaft diameter [mm]: 6

Application

• Function principle: absolute
• Detection system: magnetic

Electrical data

• Operating voltage [V]: 4.5...30 DC
• Protection class: III
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 500
• Settling time [ms]: 32
• Max. revolution electrical [U/min]: 12000

Outputs

• Short-circuit protection: yes
• Code: Gray code; (increasing code values when turned clockwise (seen on the shaft))
• Code signal: Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signals, data, and data (inv.)

Measuring/setting range

• Resolution: 4096 steps; 4096 revolutions

Accuracy / deviations

• Accuracy: ±0.1 INL

Software / programming

• Parameter setting options: zero point; direction of rotation

Interfaces

• Communication interface: SSI data interface

Operating conditions

• Ambient temperature [°C]: -40...85
• Storage temperature [°C]: -40...85
• Max. relative air humidity [%]: 95; (condensation not permissible)
• Protection: IP 65; (on the housing: IP67)

Tests / approvals

• Shock resistance: EN 60068-2-27, 100 g half-sine / 6 ms
• Vibration resistance: EN 60068-2-29, 10 g half-sine / 16 ms
• MTTF [years]: 350

Mechanical data

• Weight [g]: 348.1
• Dimensions [mm]: Ø 58 / L = 63.5
• Materials: flange: aluminium; housing: stainless steel (1.4521 / 444)
• Max. revolution, mechanical [U/min]: 12000
• Max. starting torque [Nm]: 1
• Reference temperature torque [°C]: 20
• Sha
