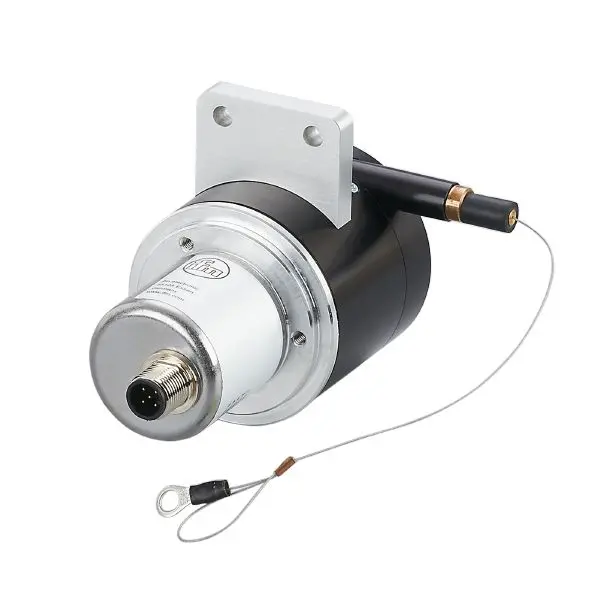

ifm Electronic RMS005 Seilzug Drehgeber

Product characteristics

• Resolution: 4096 steps; 4096 revolutions; 24 bit
• Communication interface: CAN

Application

• Function principle: absolute
• Detection system: magnetic
• Application: encoder

Electrical data

• Operating voltage [V]: 9...30 DC
• Current consumption [mA]: 50...100
• Protection class: III
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 500
• Settling time [ms]: 32

Outputs

• Short-circuit proof: yes
• Code: binary

Measuring/setting range

• Resolution: 4096 steps; 4096 revolutions; 24 bit

Accuracy / deviations

• Repeatability: ± 0,001 % FSO

Software / programming

• Parameter setting options: CAN parameter; scaling; preset; Baud rate; direction of rotation; Node ID

Interfaces

• Communication interface: CAN
• Protocol: CANopen
• Factory settings: Baud rate: 125 kBit/s
, node ID: 32
• Version: DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0

Operating conditions

• Ambient temperature [°C]: -20...80
• Storage temperature [°C]: -20...80
• Max. relative air humidity [%]: 95; (condensation not permissible)
• Protection: IP 64; (on the housing: IP 65)

Tests / approvals

• MTTF [years]: 240

Mechanical data

• Weight [g]: 3684.5
• Materials: housing: steel; wire drum: aluminium; plastics; wire: stainless steel polyamide coated
• Max. measuring length [mm]: 10000
• Wire drum circumference [mm]: 315
• Wire diameter [mm]: 1
• Wire connection: Ø 20,2 mm; (eyelet)
• Wire properties: max. speed of wire displacement, [m /s], 2
, max. wire acceleration, [g], 6, max. extension force, [N], 21, max. retraction force, [N], 8

Displays / operating elements

• Display: readine
