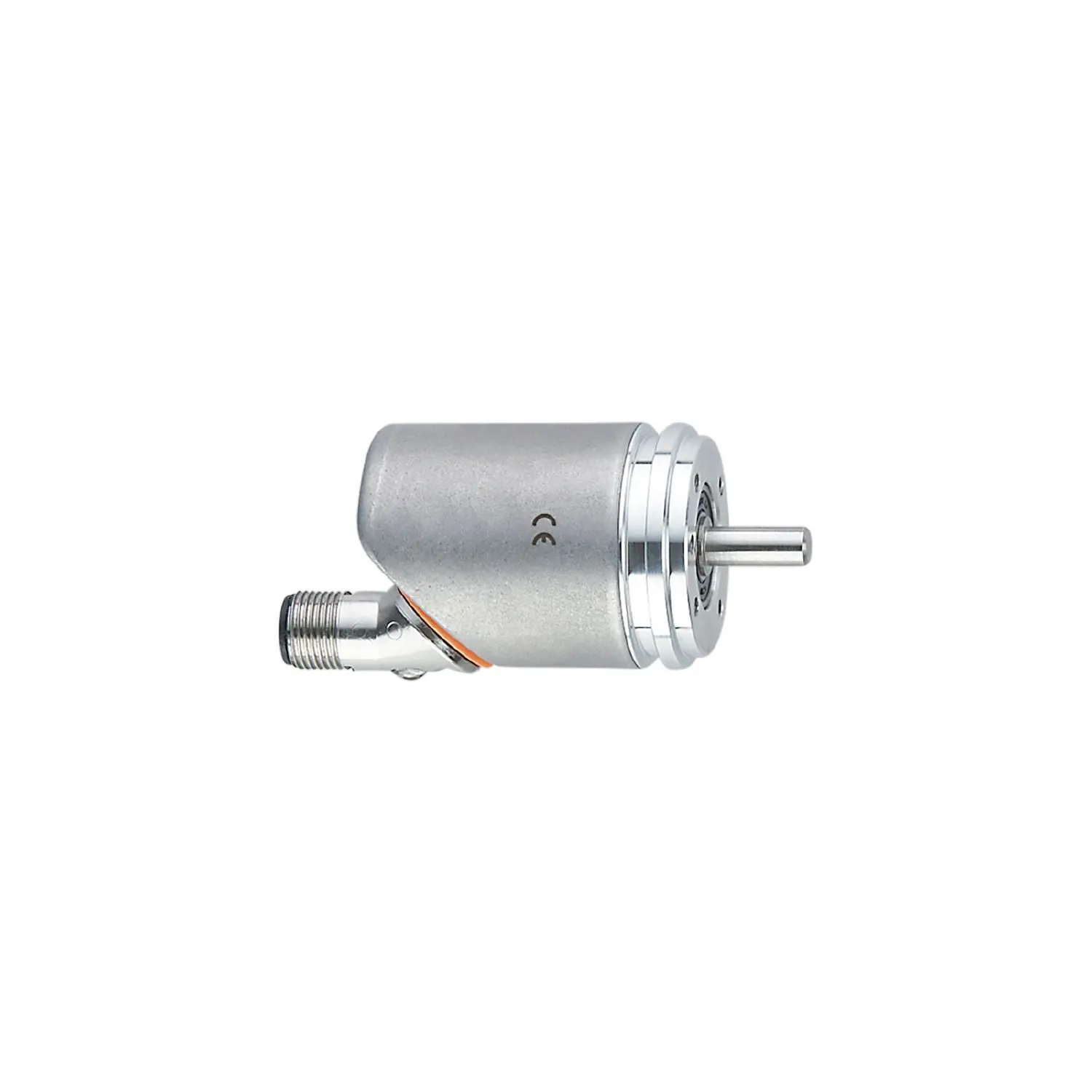

ifm Electronic RMB300 Absoluter Multiturn Drehgeber mit Vollwelle

Product characteristics

• Resolution: 65536 steps; 32768 revolutions; 31 bit
• Communication interface: IO-Link
• Shaft design: solid shaft
• Shaft diameter [mm]: 6

Application

• Function principle: absolute
• Revolution type: multiturn

Electrical data

• Operating voltage [V]: 18...30 DC; (; to PELV)
• Rated insulation voltage [V]: 30
• Current consumption [mA]: < 75
• Protection class: III
• Reverse polarity protection: yes
• Max. power-on delay time [ms]: 1000
• Max. revolution electrical [U/min]: 12000

Outputs

• Short-circuit protection: yes

Measuring/setting range

• Resolution: 65536 steps; 32768 revolutions; 31 bit

Accuracy / deviations

• Accuracy [°]: 0.1

Software / programming

• Parameter setting options: preset; zero point; direction of rotation; rotational speed

Interfaces

• Communication interface: IO-Link
• Transmission type: COM3 (230,4 kBaud)
• IO-Link revision: 1.1
• SDCI standard: IEC 61131-9 CDV
• Profiles:
  • Function class, Designation: 0x4000, Identification and Diagnosis
  , 0x8001, Switching Signal Channel, 0x800B, Measurement Data Channel (high resolution)
  • SIO mode: no
  • Required master port type: A
  • Min. process cycle time [ms]: 2.3
  • IO-Link process data (cyclical):
    • function, bit length: process value, 96
    , device status, 4, binary switching information, 5
    • IO-Link functions (acyclical): application specific tag; operating hours counter; internal temperature; switching cycles counter
    • Supported DeviceIDs:
      • Type of operation, DeviceID: default, 1064
      • Note: For further information please see the IODD PDF file under "Downloads"

      Operating conditions

      • Ambient temperature [°C]: -40...85
      • Storag
