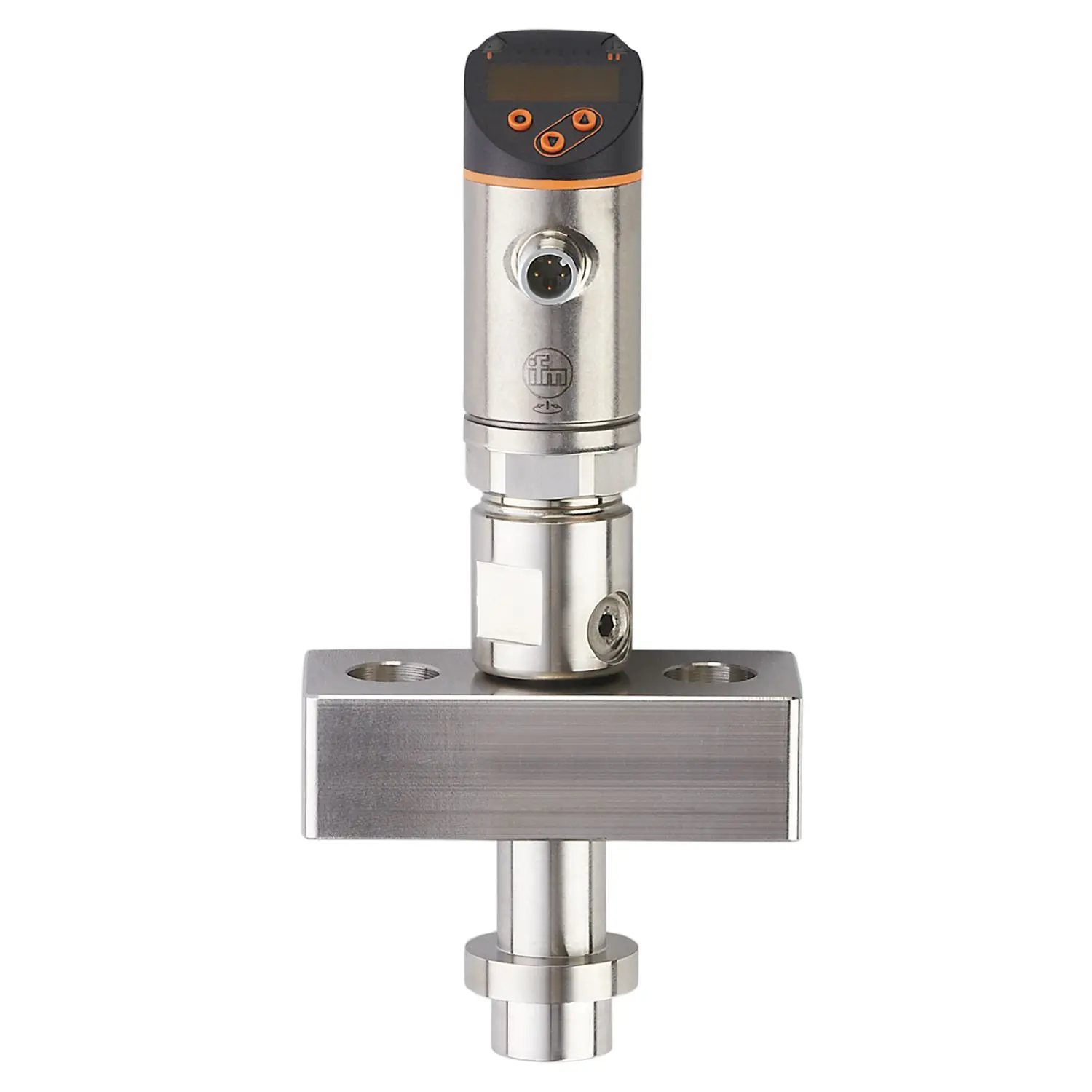

ifm Electronic PY9170 Drucksensor mit Display

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range: 0...600 bar, 0...8700 psi
• Measuring range [MPa]: 0...60
• Process connection: homogeniser connection

Application

• Special feature: Gold-plated contacts
• Measuring element: diaphragm seal
• Application: flush mountable for the food and beverage industry
• Media: liquids and gases
• Medium temperature [°C]: 5...90; (for further details see section Diagrams and graphs)
• Min. bursting pressure: 1000 bar, 14500 psi
• Min. bursting pressure [MPa]: 100
• Pressure rating: 800 bar, 11603 psi
• Pressure rating [MPa]: 80
• Note on pressure rating: take into account the pressure resistance of the screws and seals used
• Vacuum resistance [mbar]: -1000
• Type of pressure: relative pressure

Electrical data

• Operating voltage [V]: 18...30 DC; (to SELV/PELV)
• Current consumption [mA]: < 35
• Min. insulation resistance [MΩ]: 100; (500 V DC)
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 0.3
• Integrated watchdog: yes

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; IO-Link; (configurable)
• Electrical design: PNP/NPN
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: < 500
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20; (scalable 1:5)
• Max. load [Ω]: 500
• Analo
