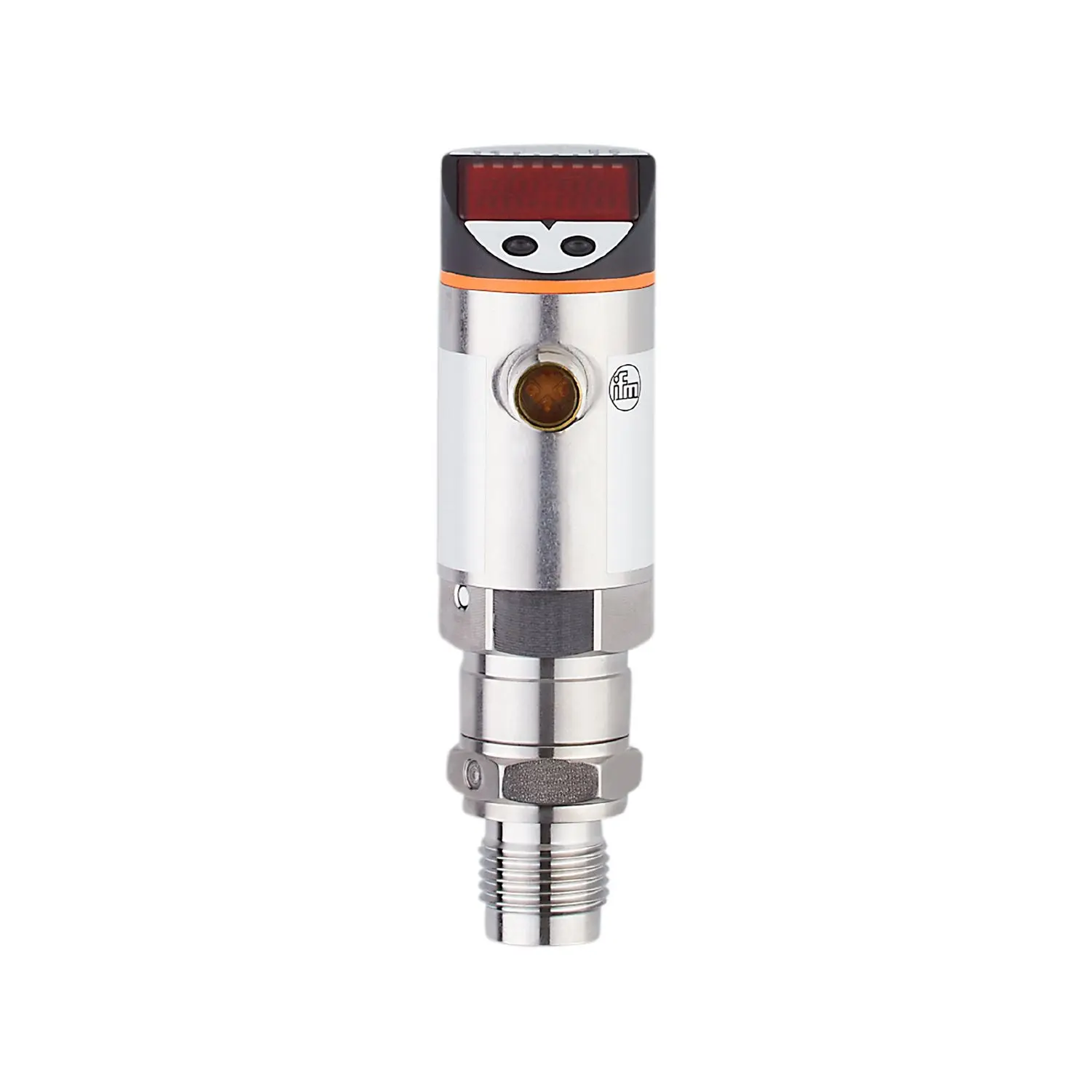

ifm Electronic PY2033 Drucksensor mit Display

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range: -1...25 bar, -14.5...362.5 psi, -0.1...2.5 MPa
• Process connection: threaded connection G 1/2 external thread

Application

• Special feature: Gold-plated contacts
• Application: flush mountable for industrial applications; for industrial applications
• Media: liquids and gases
• Medium temperature [°C]: -20...125
• Min. bursting pressure: 200 bar, 2900 psi, 20 MPa
• Pressure rating: 100 bar, 1450 psi, 10 MPa
• Type of pressure: relative pressure
• No dead space: yes

Electrical data

• Operating voltage [V]: 18...32 DC; (to SELV/PELV)
• Current consumption [mA]: < 35
• Min. insulation resistance [MΩ]: 100; (500 V DC)
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 0.3
• Integrated watchdog: yes

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; (configurable)
• Electrical design: PNP/NPN
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: < 500
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20; (scalable 1:4)
• Max. load [Ω]: (Ub - 10 V) / 20 mA
• Analogue voltage output [V]: 0...10; (scalable 1:4)
• Min. load resistance [Ω]: 2000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Measuring/setting range
