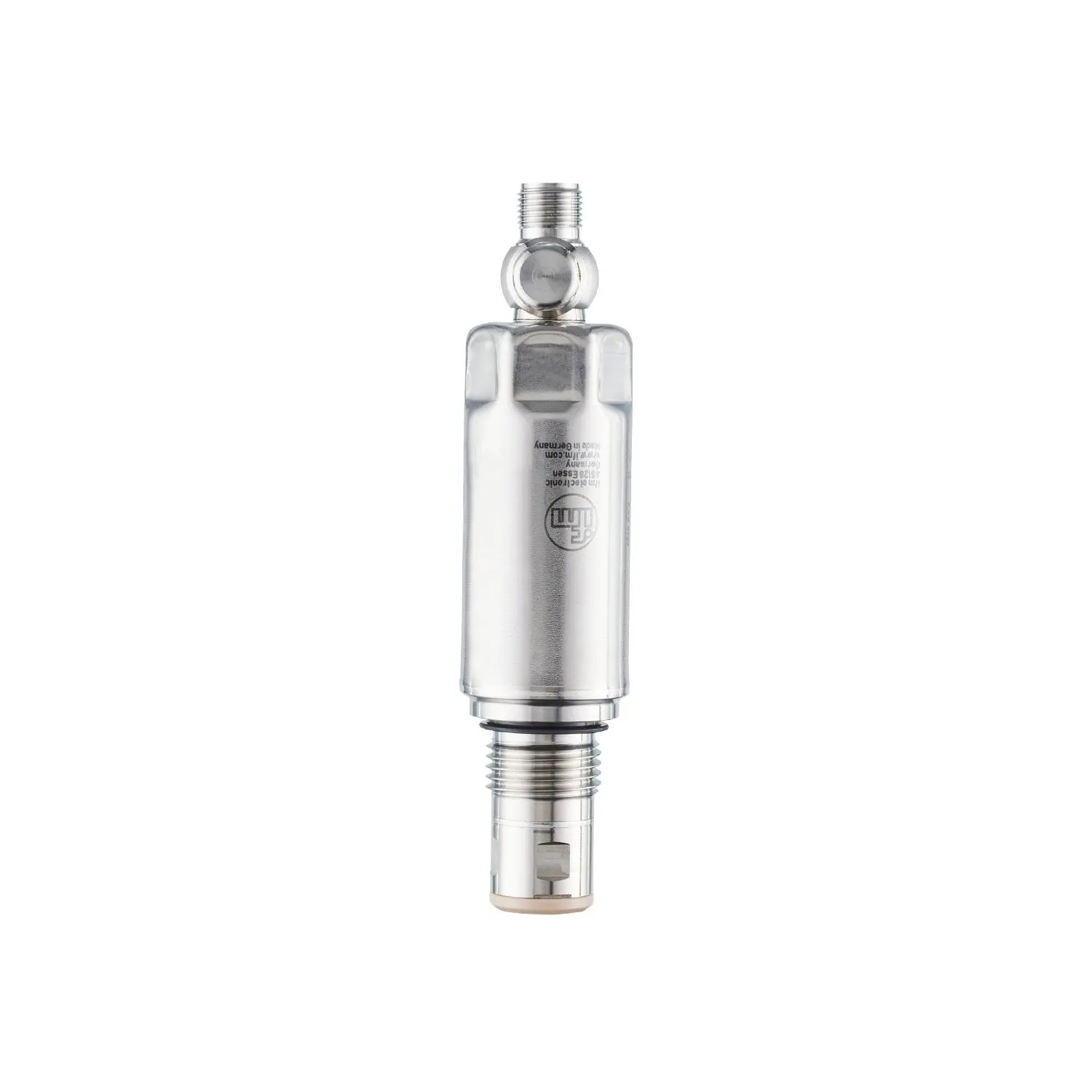

ifm Electronic PM1507 Frontbündiger Drucksensor

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1
• Measuring range: -50...1000 mbar, -0.73...14.5 psi, -5...100 kPa
• Process connection: threaded connection G 1/2 external thread sealing cone

Application

• Special feature: Gold-plated contacts
• Measuring element: ceramic-capacitive pressure measuring cell
• Temperature monitoring: yes
• Application: flush mountable for the food and beverage industry
• Media: viscous media and liquids with suspended particles; liquids and gases
• Medium temperature [°C]: -25...150
• Min. bursting pressure: 40000 mbar, 580 psi, 4000 kPa
• Pressure rating: 20000 mbar, 290 psi, 2000 kPa
• Vacuum resistance [mbar]: -1000
• Type of pressure: relative pressure
• No dead space: yes
• MAWP (for applications according to CRN) [bar]: 2

Electrical data

• Operating voltage [V]: 18...30 DC
• Min. insulation resistance [MΩ]: 100; (500 V DC)
• Protection class: III
• Reverse polarity protection: yes
• Integrated watchdog: yes
2-wire
• Current consumption [mA]: 3.5...21.5
• Power-on delay time [s]: < 1
3-wire
• Current consumption [mA]: < 45
• Power-on delay time [s]: < 0.5

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: analogue signal; IO-Link; (configurable)
• Number of digital outputs: 1; (IO-Link)
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20; (scalable; 1:5)
• Max. load [Ω]: 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
• Short-circuit proof: yes
• Overload protection: yes

Measuring/setting range

• Measuring range: -50...1000 mbar, -0.73
