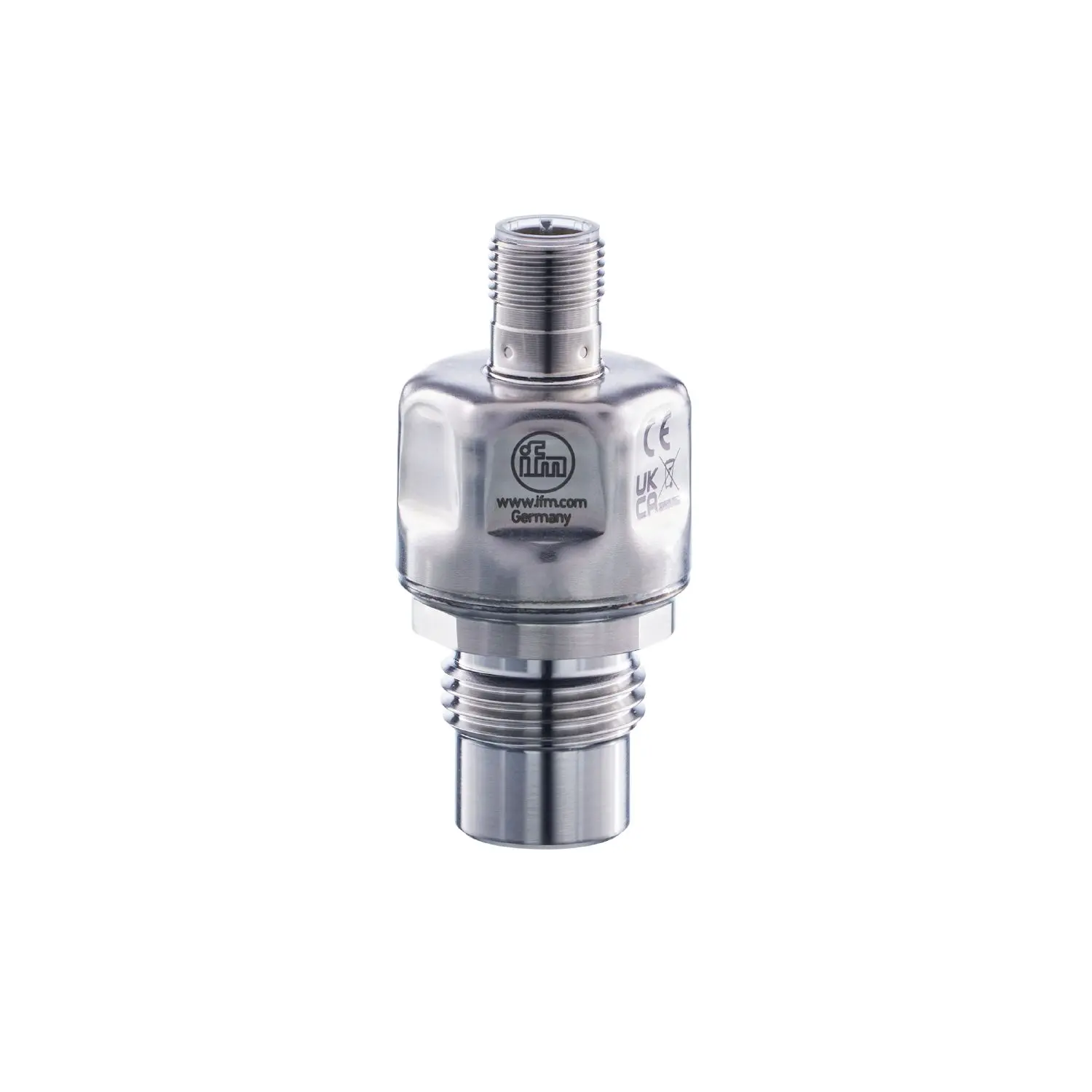

ifm Electronic PL1502 Frontbündiger Drucktransmitter

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1
• Measuring range: 0...100 bar, 0...1450 psi, 0...10 MPa
• Process connection: threaded connection G 1/2 external thread

Application

• Special feature: Gold-plated contacts
• Measuring element: ceramic-capacitive pressure measuring cell
• Temperature monitoring: yes
• Application: flush mountable for industrial applications; for industrial applications
• Media: viscous media and liquids with suspended particles; Liquids; other media on request
• Medium temperature [°C]: -25...110; (flush mount zero-leak using metal-to-metal seal. for permissible temperatures of other sealing versions, see sealing materials under “Accessories”)
• Min. bursting pressure: 400 bar, 5800 psi, 40 MPa
• Pressure rating: 250 bar, 3625 psi, 25 MPa
• Vacuum resistance [mbar]: -1000
• Type of pressure: relative pressure
• No dead space: yes

Electrical data

• Operating voltage [V]: 9.6...30 DC
• Min. insulation resistance [MΩ]: 100; (500 V DC)
• Protection class: III
• Reverse polarity protection: yes
• Integrated watchdog: yes
2-wire
• Current consumption [mA]: 3.5...21.5
• Power-on delay time [s]: < 1
3-wire
• Current consumption [mA]: < 30
• Power-on delay time [s]: < 0.5

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: analogue signal; IO-Link (configurable)
• Number of digital outputs: 1; (IO-Link)
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20; (scalable; 1:5)
• Max. load [Ω]: (Ub - 9,6 V) / 21,5 mA; 670 Ω (Ub = 24 V)
• Short-circuit proof: yes
• Overload pr
