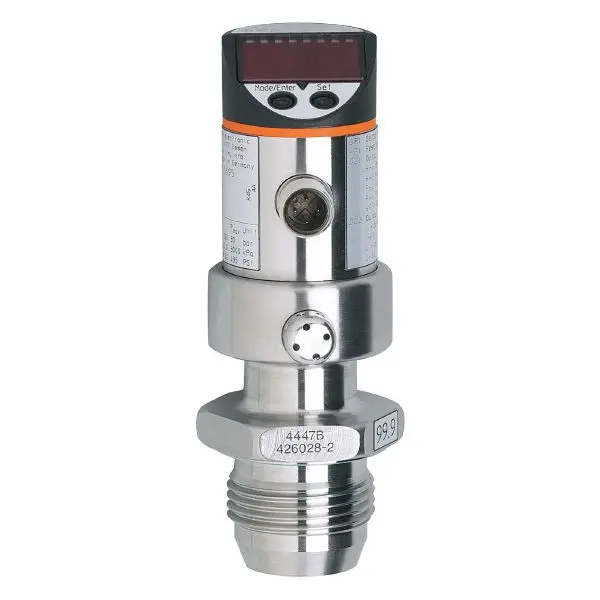

ifm Electronic PIM694 Drucksensor mit Pumpendiagnosefunktion

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range: -1...10 bar, -14.5...145 psi, -0.1...1 MPa
• Process connection: threaded connection G 1 external thread sealing cone

Application

• Special feature: Gold-plated contacts
• Application: flush mountable for the food and beverage industry
• Installation: freely rotatable housing 350°
• Media: viscous media and liquids with suspended particles; liquids and gases
• Medium temperature [°C]: -25...125; (145 max. 1h)
• Min. bursting pressure: 150 bar, 2175 psi, 15 MPa
• Pressure rating: 50 bar, 725 psi, 5 Mpa
• Type of pressure: relative pressure; vacuum
• No dead space: yes

Electrical data

• Operating voltage [V]: 18...32 DC
• Current consumption [mA]: < 50
• Min. insulation resistance [MΩ]: 100; (500 V DC)
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 0.2
• Integrated watchdog: yes

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; (configurable)
• Electrical design: PNP
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 350
• Notes on switching frequency [Hz]: OUT2
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20, invertible; (scalable)
• Max. load [Ω]: (Ub - 10 V) / 20 mA
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: y
