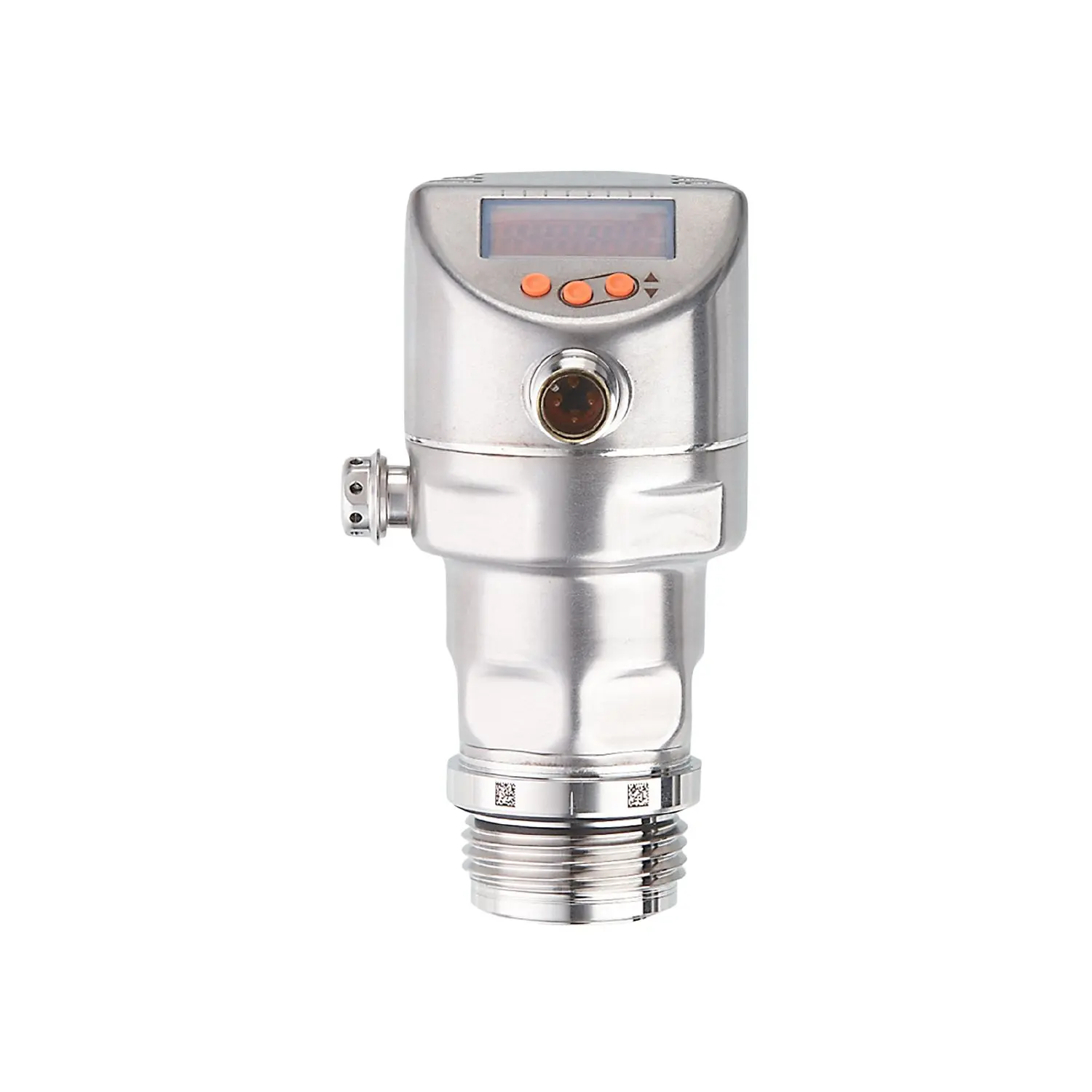

ifm Electronic PI1703 Frontbündiger Drucksensor mit Display

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range: -1...25 bar, -14.5...362.5 psi, -0.1...2.5 MPa
• Process connection: threaded connection G 1 external thread Aseptoflex Vario

Application

• Special feature: Gold-plated contacts
• Application: flush mountable for the food and beverage industry
• Media: viscous media and liquids with suspended particles; liquids and gases
• Medium temperature [°C]: -25...150
• Min. bursting pressure: 350 bar, 5075 psi, 35 MPa
• Pressure rating: 100 bar, 1450 psi, 10 MPa
• Vacuum resistance [mbar]: -1000
• Type of pressure: relative pressure; vacuum
• No dead space: yes
• MAWP (for applications according to CRN) [bar]: 61

Electrical data

• Min. insulation resistance [MΩ]: 100; (500 V DC)
• Protection class: III
• Reverse polarity protection: yes
• Integrated watchdog: yes
2-wire
• Operating voltage [V]: 20...30 DC
• Current consumption [mA]: 3.5...21.5
• Power-on delay time [s]: < 1
3-wire
• Operating voltage [V]: 18...30 DC
• Current consumption [mA]: 5...45; (430 bei max. Laststrom)
• Power-on delay time [s]: < 0.5

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; IO-Link
• Electrical design: PNP/NPN
• Number of digital outputs: 2
• Output function: normally open / normally closed; (parameterisable)
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20, invertible; (scalable)
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes
2-wire
