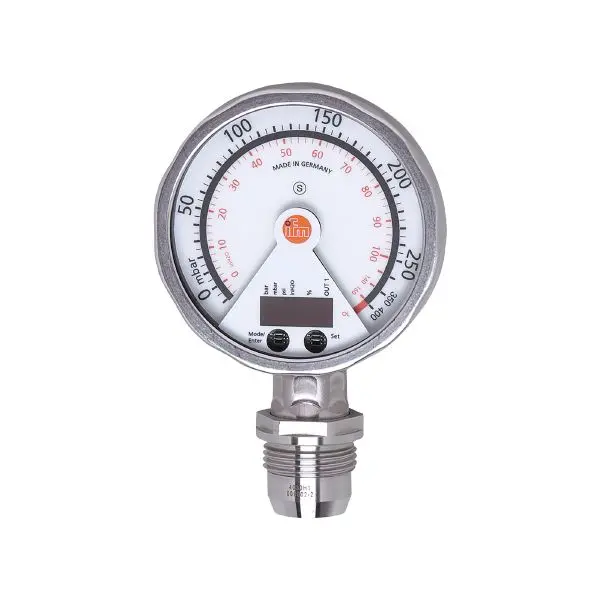

ifm Electronic PG2897 Frontbündiger Drucksensor mit analoger Anzeige

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1
• Measuring range: -0.05...1 bar, -50...1000 mbar, -0.73...14.5 psi
• Process connection: threaded connection G 1 external thread sealing cone Attention: The unit must only be installed in a process connection for G1 sealing cone.; The G1A sealing cone of the unit is only suited for adapters with metal end stop.

Application

• Special feature: Gold-plated contacts
• Application: flush mountable for the food and beverage industry
• Media: viscous media and liquids with suspended particles; liquids and gases
• Medium temperature [°C]: -25...125; (145 max. 1h)
• Min. bursting pressure: 30 bar, 435 psi
• Pressure rating: 10 bar, 145 psi
• Type of pressure: relative pressure
• MAWP (for applications according to CRN) [bar]: 10

Electrical data

• Operating voltage [V]: 18...32 DC
• Current consumption [mA]: < 70; (24 V)
• Min. insulation resistance [MΩ]: 100; (500 V DC)
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 6
• Measuring principle: hydrostatic
• Integrated watchdog: yes

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; (configurable)
• Electrical design: PNP/NPN
• Number of digital outputs: 1
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 50
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20, invertible; (scalable)
• Max. load [Ω]: (Ub
