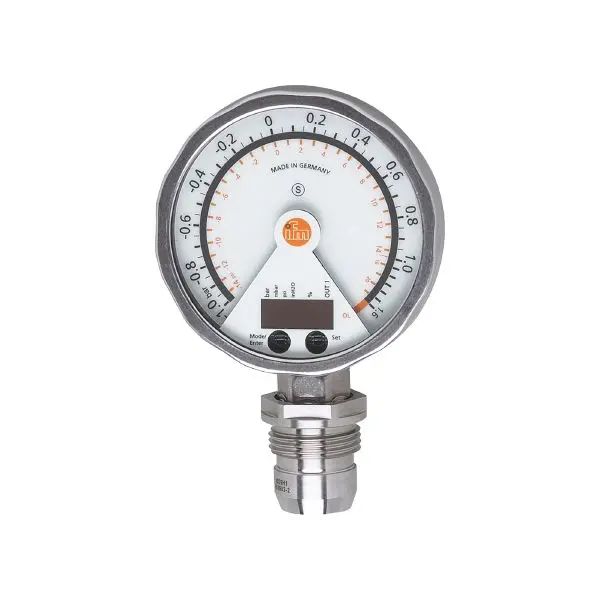

ifm Electronic PG2409 Drucksensor mit analoger Anzeige

Product characteristics

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1
• Measuring range: -1...1 bar, -1000...1000 mbar, -14.52...14.52 psi
• Process connection: threaded connection G 1/2 external thread

Application

• Special feature: Gold-plated contacts
• Application: for industrial applications
• Media: liquids and gases
• Medium temperature [°C]: -25...80
• Min. bursting pressure: 30 bar, 435 psi
• Pressure rating: 10 bar, 145 psi
• Type of pressure: relative pressure; vacuum

Electrical data

• Operating voltage [V]: 18...32 DC
• Current consumption [mA]: < 70; (24 V)
• Min. insulation resistance [MΩ]: 100; (500 V DC)
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: 6
• Integrated watchdog: yes

Inputs / outputs

• Number of inputs and outputs: Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

• Total number of outputs: 2
• Output signal: switching signal; analogue signal; (configurable)
• Electrical design: PNP/NPN
• Number of digital outputs: 1
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 75
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20, invertible; (scalable)
• Max. load [Ω]: (Ub - 10 V) / 20 mA
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Measuring/setting range

• Measuring range: -1...1 bar, -1000...1000 mbar, -14.52...14.52 psi
• Set point SP: -0.992...1.6 bar, -14.4...23.22 psi
• Reset point rP: -1...1.592 bar, -14.52...23.1 ps
