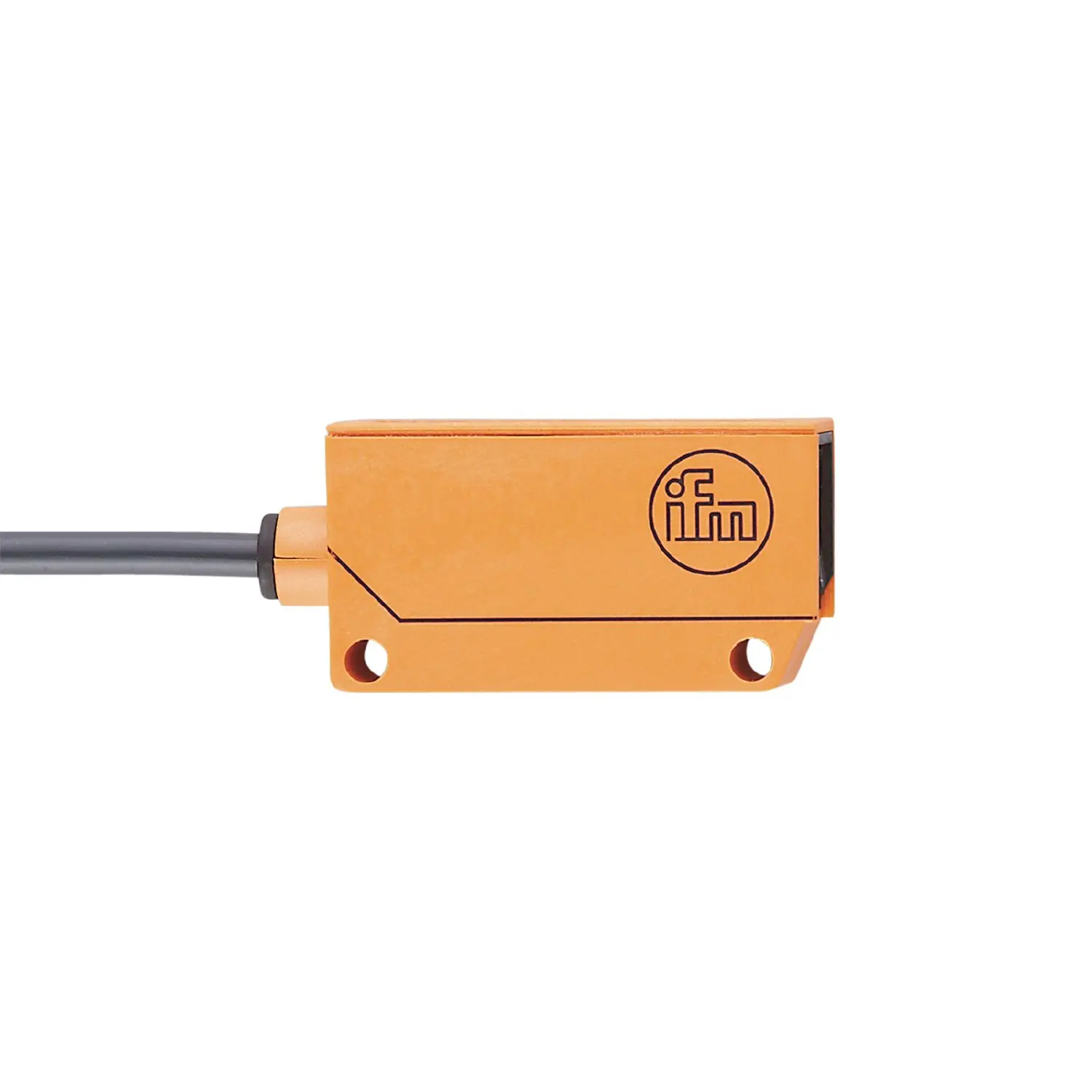

ifm Electronic OU5018 Reflexlichttaster

Product characteristics

• Type of light: infrared light
• Housing: rectangular

Application

• Function principle: Diffuse reflection sensor

Electrical data

• Operating voltage [V]: 10...55 DC
• Current consumption [mA]: 35; ((24 V))
• Protection class: II
• Reverse polarity protection: yes
• Type of light: infrared light
• Wave length [nm]: 880

Outputs

• Electrical design: PNP
• Output function: light-on mode
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 160
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Range [mm]: 1...200; (white paper 200 x 200 mm)
• Range adjustable: yes
• Max. light spot diameter [mm]: 180
• Light spot dimensions refer to: at maximum range

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 685

Mechanical data

• Weight [g]: 283
• Housing: rectangular
• Dimensions [mm]: 28 x 16 x 51
• Materials: PPO modified
• Lens material: glass
• Lens alignment: side lens

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: Angle bracket: 1, E20211

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 6 m, PVC; 3 x 0.34 mm²
