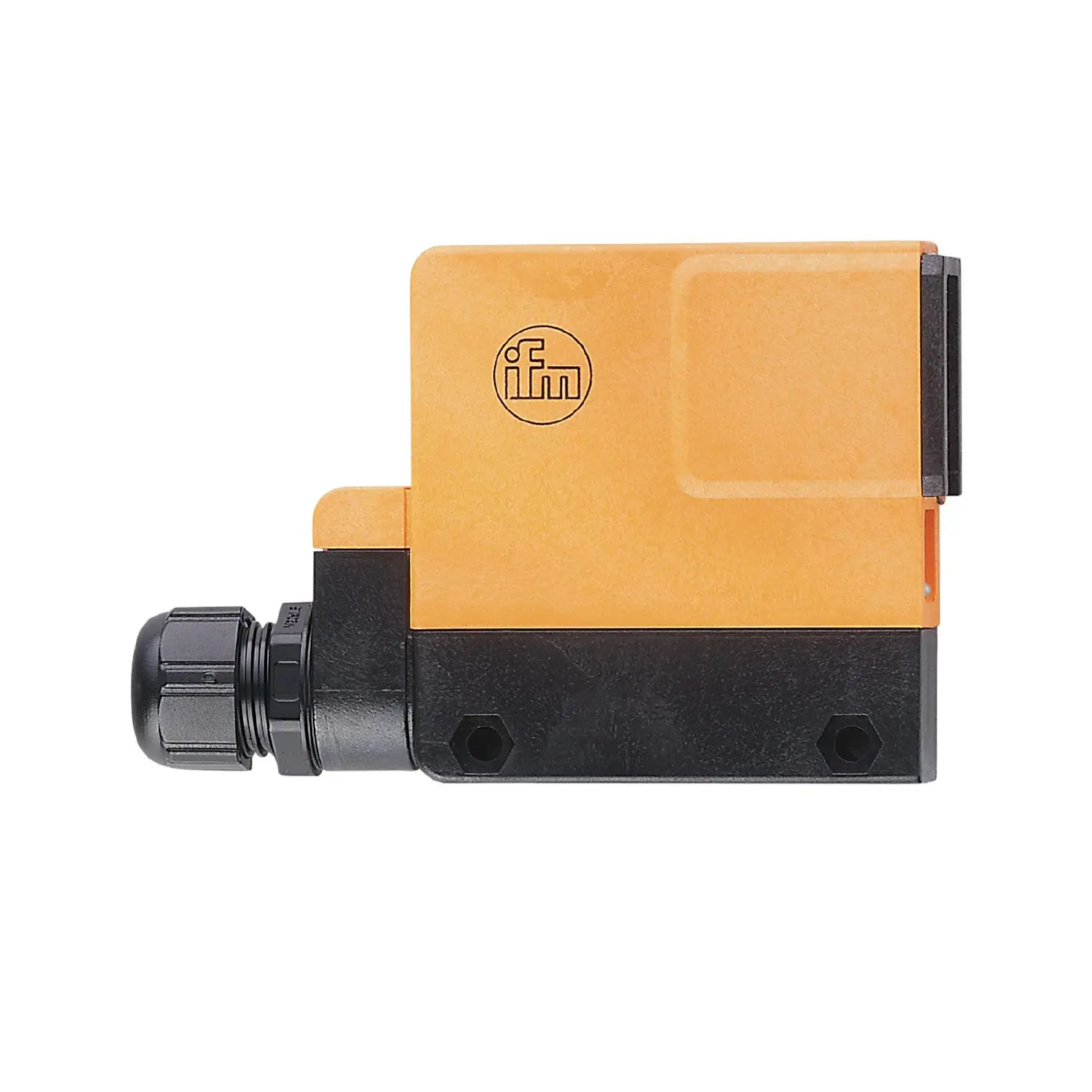

ifm Electronic OS0023 Einweglichtschranke Empfänger

Product characteristics

• Type of light: infrared light
• Housing: rectangular

Application

• Function principle: Through-beam sensor

Electrical data

• Operating voltage [V]: 20...250 AC/DC
• Protection class: II
• Reverse polarity protection: yes
• Type of light: infrared light
• Wave length [nm]: 880

Outputs

• Output function: light-on/dark-on mode; (programmable)
• Max. voltage drop switching output DC [V]: 10.5
• Max. voltage drop switching output AC [V]: 10.5
• Minimum load current [mA]: 15
• Max. leakage current [mA]: 4
• Permanent current rating of switching output AC [mA]: 250; (350 (...50 °C))
• Permanent current rating of switching output DC [mA]: 250; (350 (...50 °C))
• Short-time current rating of switching output [mA]: 2200; (10 ms / 0,5 Hz)
• Switching frequency AC [Hz]: 25
• Switching frequency DC [Hz]: 100
• Short-circuit proof: no
• Overload protection: no

Detection zone

• Transmitter / receiver: receiver
• Range [m]: < 20
• Range adjustable: yes

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 300

Mechanical data

• Weight [g]: 277
• Housing: rectangular
• Dimensions [mm]: 80 x 28 x 95
• Materials: PPO modified
• Lens material: glass
• Lens alignment: side lens

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Electrical connection

• Required protection: miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

• Items supplied: Angle bracket: 1, E20210
, screwdrivers

Remarks

• Remarks: Recommendation: Check the safe functioning of th
