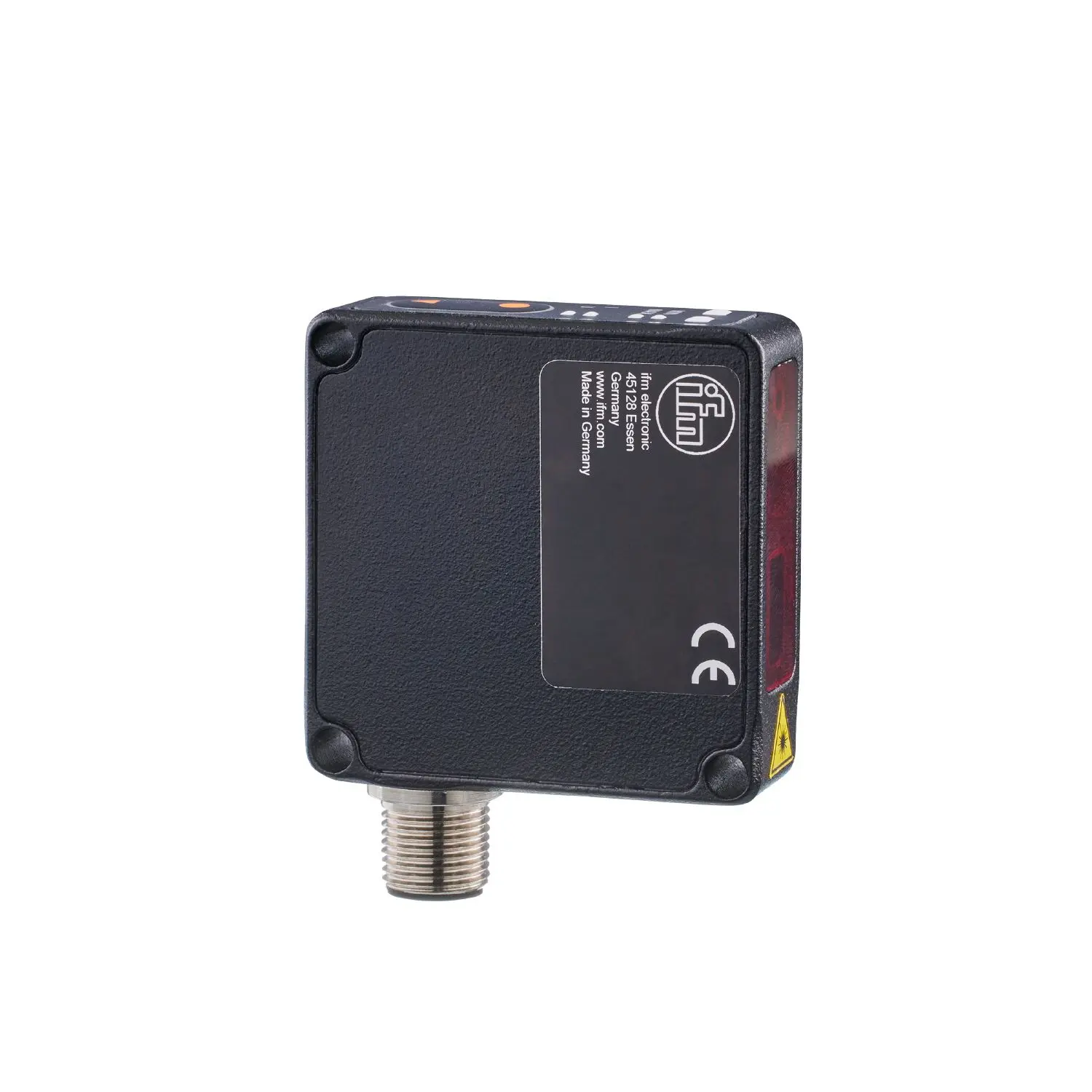

ifm Electronic OMH553 Optischer Abstandssensor

Product characteristics

• Type of light: red light
• Laser protection class: 1
• Housing: rectangular

Electrical data

• Operating voltage [V]: 10...30 DC; ("supply class 2" to cULus)
• Current consumption [mA]: < 30
• Protection class: III
• Reverse polarity protection: yes
• Power-on delay time [s]: < 0.3
• Type of light: red light
• Wave length [nm]: 630
• Typ. lifetime [h]: 50000

Inputs / outputs

• Number of inputs and outputs: Number of digital inputs: 1; Number of digital outputs: 1; Number of analogue outputs: 1

Inputs

• Inputs: Laser On/ Off
• Number of digital inputs: 1

Outputs

• Total number of outputs: 2
• Electrical design: PNP/NPN; (parameterisable)
• Number of digital outputs: 1
• Output function: normally open / normally closed; (parameterisable)
• Max. voltage drop switching output DC [V]: 2.2
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 200
• Notes on switching frequency [Hz]: standard
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20; (IEC61131-2)
• Max. load [Ω]: 500
• Analogue voltage output [V]: 0...10; (IEC 61131-2)
• Min. load resistance [Ω]: 5000
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Range adjustable: yes
• Max. light spot diameter [mm]: 1
• Light spot dimensions refer to: at maximum range

Measuring/setting range

• Measuring range [m]: 0.05...0.2; (6...90% remission)

Accuracy / deviations

• Temperature compensation: yes
• Repeatability [mm]: 0.1
• Linearity error of analogue output [%]: ±0,07
• Resolution [mm]: 0,05
• Notes on the accuracy / deviation: The indicated values are reached after a warm
