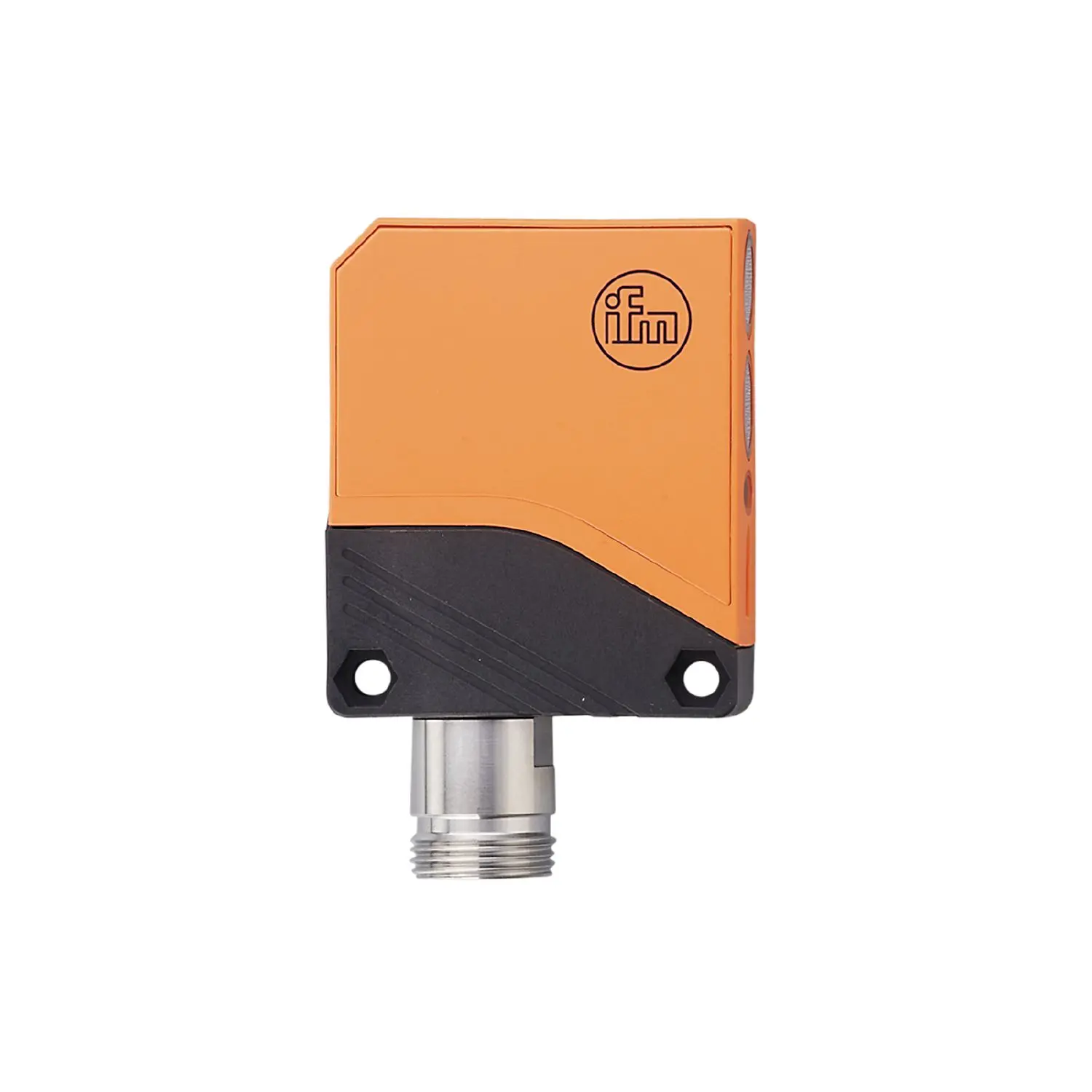

ifm Electronic OL0010 Reflexlichtschranke

Product characteristics

• Type of light: red light
• Housing: rectangular

Application

• Special feature: polarisation filter
• Function principle: Retro-reflective sensor

Electrical data

• Frequency AC [Hz]: 47...63
• Operating voltage [V]: 20...250 AC/DC
• Max. power consumption [VA]: 4
• Protection class: I
• Reverse polarity protection: no
• Type of light: red light
• Wave length [nm]: 660
• Typ. lifetime [h]: 100000
• Reference temperature for service life [°C]: 25

Outputs

• Electrical design: relay
• Output function: light-on/dark-on mode; (programmable)
• Contact rating: 250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W
• Switching frequency AC [Hz]: 10
• Switching frequency DC [Hz]: 10
• Short-circuit proof: no
• Overload protection: no

Detection zone

• Range referred to prismatic reflector [m]: 0.3...5; (Prismatic reflector Ø 80 E20005)
• Range adjustable: yes
• Polarisation filter available: yes

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 256

Mechanical data

• Weight [g]: 202.5
• Housing: rectangular
• Dimensions [mm]: 75 x 27 x 62
• Materials: PA; PBT
• Lens material: PMMA
• Lens alignment: side lens

Displays / operating elements

• Display: switching status, 1 x LED, yellow
, operation, 1 x LED, green, function, 1 x LED, red

Electrical connection

• Required protection: miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting

Remarks

• Remarks: Recommendation: Check the safe functioning of the unit after a short circuit.
• Pack quantity: 1 pcs.
